One-Touch Couplings（Thread Material：SUS316）

Quick connect fittings are couplings used when connecting tubes used as pneumatic equipment lines. They can be fastened just by inserting them into a tube of compatible size, and can be easily removed by pressing in a ring on the fitting opening. Quick connect fittings come in a number of different varieties. Examples include straight (having a male screw thread at the side connecting to the tube), female straight (having a female screw thread), elbow (having a male screw thread tilted at a 90-degree angle), union (having a tube fitting mechanism on both ends designed to connect 2 tubes together) and tee (having the outlets to the tubes branched into a T shape). Screw threads are made of different materials for different applications. There are quick-connect fittings that can be used for applications such as clean environments, food/chemicals, static electricity dispersal/charge prevention and powder spattering.

11 items

: 30; 45; 60

Days to Ship	All 1 Day(s) or Less 2 Day(s) or Less 3 Day(s) or Less 5 Day(s) or Less 6 Day(s) or Less 7 Day(s) or Less 8 Day(s) or Less 9 Day(s) or Less 10 Day(s) or Less 11 Day(s) or Less

Elbow Union Fitting KQG2L Metal One-Touch Pipe Fitting

SMC

SMC One-Touch fitting.
[Features]
· Compact and lightweight.
· Grease-free.
· Can be used with steam.
· Metal part: SUS316, Seal part: special FKM.
· Working fluid temperature: -5 to +150°C
· Conforms to the Food Sanitation Act of Japan. (Part materials conform to the tool and packaging container standards test.)
[Applications]
· Used for perpendicular piping from a female thread.

CAD ：: 2D / 3D

Standard Price:	MYR 98.00-
Days to Ship:	1 Day(s) or more

"Same Day Ship Out" is available for item with 1 day

Half Union Fitting With Hex Socket KQG2S, SUS316 One-Touch Pipe Fitting

SMC

SMC One-Touch fitting.
[Features]
· Compact and lightweight.
· Grease-free.
· Can be used with steam.
· Metal part: SUS316, Seal part: special FKM.
· Working fluid temperature: -5 to +150°C
· Conforms to the Food Sanitation Act of Japan. (Part materials conform to the tool and packaging container standards test.)
[Applications]
· A half union fitting for tight spaces with a hex socket in the body that can be tightened with a hex wrench.

CAD ：: 2D / 3D

Standard Price:	MYR 67.98-
Days to Ship:	1 Day(s) or more

"Same Day Ship Out" is available for item with 1 day

for Corrosion Resistance, SUS316 Fitting, Straight

PISCO

All metal parts and materials use SUS316 for excellent rust resistance.

CAD ：: 2D / 3D

Standard Price:	MYR 57.15-
Days to Ship:	1 Day(s) or more

"Same Day Ship Out" is available for item with 1 day

All Stainless Steel One-Touch Couplings - Male Connectors

MISUMI_Test

Volume Discount

CAD ：: 2D / 3D

Standard Price:	MYR 50.82-
Days to Ship:	1 Day(s) or more

"Same Day Ship Out" is available for item with 1 day

Branch Tee Union Fitting KQG2T, SUS316 One-Touch Pipe Fitting

SMC

CAD ：: 2D / 3D

Standard Price:	MYR 147.34-
Days to Ship:	21 Day(s) or more

"Same Day Ship Out" is available for item with 1 day

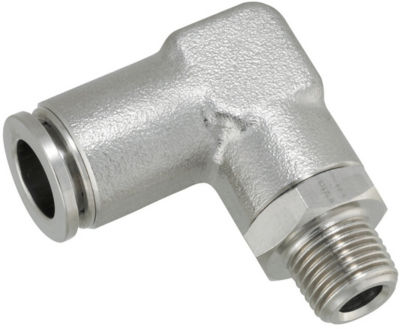

All Stainless Steel One-Touch Couplings - Male Elbows

MISUMI_Test

Volume Discount

CAD ：: 2D / 3D

Standard Price:	MYR 100.43-
Days to Ship:	2 Day(s) or more

"Same Day Ship Out" is available for item with 1 day

for Corrosion Resistance, SUS316 Fitting, Elbow

PISCO

All metal parts and materials use SUS316 to provide excellent rust resistance.

CAD ：: 2D / 3D

Standard Price:	MYR 91.71-
Days to Ship:	1 Day(s) or more

"Same Day Ship Out" is available for item with 1 day

Half Union Fitting KQG2H, SUS316 One-Touch Pipe Fitting

SMC

SMC One-Touch fitting.
[Features]
· Compact with reduced weight.
· Non-grease.
· Can be used with steam.
· Metal part: SUS316, Seal part: special FKM.
· Operating fluid temperature: -5 to +150°C
· Conforms to the Food Sanitation Act of Japan. (Part materials conform to the tool and packaging container standards test.)
[Applications]
· Used for piping in one direction from a female thread.

CAD ：: 2D / 3D

Standard Price:	MYR 66.22-
Days to Ship:	1 Day(s) or more

"Same Day Ship Out" is available for item with 1 day

Bulkhead Female Union Fitting KQG2E, SUS316 One-Touch Pipe Fitting

SMC

One-touch fitting for bulkheads.
[Features]
· Compact and lightweight.
· Working fluid temperature: -5 to +150°C
· Materials: metal parts; SUS316, seal part; special FKM.
· Non-grease. Can be used with steam.
· Conforms to the Food Sanitation Act of Japan.
[Applications]
· Used for transit connection of a tube and a male screw for installation of a panel.

CAD ：: 2D / 3D

Standard Price:	MYR 156.72-
Days to Ship:	1 Day(s) or more

"Same Day Ship Out" is available for item with 1 day

Long Elbow Union Fitting KQG2W, SUS316 One-Touch Pipe Fitting

SMC

One-touch fitting ideal for preventing interference.
[Features]
· Compact and lightweight.
· Working fluid temperature: -5 to +150°C
· Materials: metal parts; SUS316, seal part; special FKM.
· Non-grease. Can be used with steam.
· Conforms to the Food Sanitation Act of Japan.
[Applications]
· The pipe is multi-layered and is used to prevent fitting interference.

CAD ：: 2D / 3D

Standard Price:	MYR 111.70-
Days to Ship:	1 Day(s) or more

"Same Day Ship Out" is available for item with 1 day

Female Union Fitting KQG2F, SUS316 One-Touch Pipe Fitting

SMC

One-touch fitting used for piping from a male thread.
[Features]
· Compact and lightweight.
· Working fluid temperature: -5 to +150°C
· Materials: metal parts; SUS316, seal part; special FKM.
· Non-grease. Can be used with steam.
· Conforms to the Food Sanitation Act of Japan.
[Applications]
· Use to pipe from male threads, such as on pressure gauges.

CAD ：: 2D / 3D

Standard Price:	MYR 115.20-
Days to Ship:	1 Day(s) or more

"Same Day Ship Out" is available for item with 1 day


Brand
Product Series
CAD
Days to Ship
Types
Fitting Type
Applicable Fluid
Body Material
Application
Thread Material
Seal Material
Screw Mounting, Direction
Elbows
Screw Mounting, Multipoint
Union, Equal Dia.
Union, Unequal Dia.
Sockets, Reducers
Branch A
Other Shapes
For Swivel Parts, Rotary Equipment Parts
Applicable Tube O.D.1(φ)
Applicable Tube Outer Diameter 2(φ)


Brand	SMC	SMC	PISCO	MISUMI_Test	SMC	MISUMI_Test	PISCO	SMC	SMC	SMC	SMC
Product Series	Elbow Union Fitting KQG2L Metal One-Touch Pipe Fitting	Half Union Fitting With Hex Socket KQG2S, SUS316 One-Touch Pipe Fitting	for Corrosion Resistance, SUS316 Fitting, Straight	All Stainless Steel One-Touch Couplings - Male Connectors	Branch Tee Union Fitting KQG2T, SUS316 One-Touch Pipe Fitting	All Stainless Steel One-Touch Couplings - Male Elbows	for Corrosion Resistance, SUS316 Fitting, Elbow	Half Union Fitting KQG2H, SUS316 One-Touch Pipe Fitting	Bulkhead Female Union Fitting KQG2E, SUS316 One-Touch Pipe Fitting	Long Elbow Union Fitting KQG2W, SUS316 One-Touch Pipe Fitting	Female Union Fitting KQG2F, SUS316 One-Touch Pipe Fitting
CAD	2D / 3D	2D / 3D	2D / 3D	2D / 3D	2D / 3D	2D / 3D	2D / 3D	2D / 3D	2D / 3D	2D / 3D	2D / 3D
Days to Ship	1 Day(s) or more	1 Day(s) or more	1 Day(s) or more	1 Day(s) or more	21 Day(s) or more	2 Day(s) or more	1 Day(s) or more	1 Day(s) or more	1 Day(s) or more	1 Day(s) or more	1 Day(s) or more
Types	One-Touch Couplings	One-Touch Couplings	One-Touch Couplings	One-Touch Couplings	One-Touch Couplings	One-Touch Couplings	One-Touch Couplings	One-Touch Couplings	One-Touch Couplings	One-Touch Couplings	One-Touch Couplings
Fitting Type	Screw Mounting, Direction	Screw Mounting, Direction	Screw Mounting, Direction	Screw Mounting, Direction	Screw Mounting, Multipoint	Screw Mounting, Direction	Screw Mounting, Direction	Screw Mounting, Direction	Screw Mounting, Direction	Screw Mounting, Direction	Screw Mounting, Direction
Applicable Fluid	Water / Air	Water / Air	Water / Air / Chemical, Solvent / Mixed Gas	Air	Water / Air	Water / Air	Water / Air / Chemical, Solvent / Mixed Gas	Water / Air	Water / Air	Water / Air	Water / Air
Body Material	SUS316	SUS316	SUS316	SUS316	SUS316	SUS316	SUS316	SUS316	SUS316	SUS316	SUS316
Application	Standard, Mini	Standard, Mini	Food, Pharmaceutical Related / Static Dissipation Antistatic / Mold Temperature Adjustment / Heat Resistant / Cold Resistant	Standard, Mini	Standard, Mini	Standard, Mini	Food, Pharmaceutical Related / Static Dissipation Antistatic / Mold Temperature Adjustment / Heat Resistant / Cold Resistant	Standard, Mini	Standard, Mini	Standard, Mini	Standard, Mini
Thread Material	SUS316	SUS316	SUS316	SUS316	SUS316	SUS316	SUS316	SUS316	SUS316	SUS316	SUS316
Seal Material	Fluororubber	Fluororubber	-	Fluororubber	Fluororubber	Fluororubber	-	Fluororubber	Fluororubber	Fluororubber	Fluororubber
Screw Mounting, Direction	Elbows	With Hex Socket, Straight	Straight	Straight	-	-	Elbows	Straight	Partition Female Straight	Elbows	Female Straight
Elbows	Universal Elbows	-	-	-	-	-	Male Elbows	-	-	Universal Elbows	-
Screw Mounting, Multipoint	-	-	-	-	Tees	-	-	-	-	-	-
Union, Equal Dia.	-	-	-	-	-	-	-	-	-	-	-
Union, Unequal Dia.	-	-	-	-	-	-	-	-	-	-	-
Sockets, Reducers	-	-	-	-	-	-	-	-	-	-	-
Branch A	-	-	-	-	-	-	-	-	-	-	-
Other Shapes	-	-	-	-	-	-	-	-	-	-	-
For Swivel Parts, Rotary Equipment Parts	-	-	-	-	-	-	-	-	-	-	-
Applicable Tube O.D.1(φ)	4 ～ 16	4 ～ 16	4 ～ 12	-	4 ～ 16	-	4 ～ 10	4 ～ 16	4 ～ 16	4 ～ 12	4 ～ 16
Applicable Tube Outer Diameter 2(φ)	-	-	-	-	-	-	-	-	-	-	-
