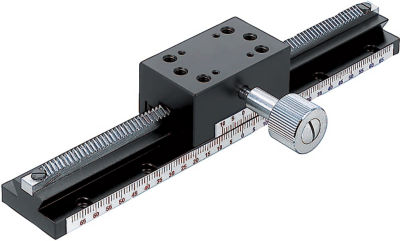

[High Precision] X-Axis Dovetail Slide, Rack & Pinion - Long
![[High Precision] X-Axis Dovetail Slide, Rack & Pinion - Long](http://assets.misumi-ec.com/is/image/misumiPrd/110300193050_001?$product_main$)
![[High Precision] X-Axis Dovetail Slide, Rack & Pinion - Long](http://assets.misumi-ec.com/is/image/misumiPrd/110300193050_001?$product_thum$)
![[High Precision] X-Axis Dovetail Slide, Rack & Pinion - Long](http://assets.misumi-ec.com/is/image/misumiPrd/110300193050_002?$product_thum$)
![[High Precision] X-Axis Dovetail Slide, Rack & Pinion - Long](http://assets.misumi-ec.com/is/image/misumiPrd/110300193050_003?$product_thum$)
Part Number
Configured Part Number is shown.
XLWG70
Part Number
CAD Data download and 3D preview are not available because the part number has not yet been determined.
- *In order to open the CAD Data download and 3D preview screen, the part number must be fixed.
- Please confirm the part number from "Specification / Dimension"on the left side, and then perform the CAD Data Download / 3D Preview operation.
Basic Information
| Table Size (Length) L (Range Selectable)(mm) | 41~60 | Table Size (Width) W (Range Selectable)(mm) | ~25 | Load Capacity (Range Selectable)(N) | 5~30 |
|---|---|---|---|---|---|
| Feeding Method | Rack & Pinion | Table Material | Aluminum Alloy | Table Surface Treatment | Black Anodize |
| Travel Guide | Dovetail Slide | Table Size (Thickness) H (Range Selectable)(mm) | 20.1~25 | Product Category | Main Body |
| Table Size (Length) L(mm) | 42 | Table Size (Width) W(mm) | 25 | Load Capacity(N) | 29.4 |
| Table Size (Thickness) H(mm) | 25 | Type | X-Axis | Feed Knob Position | Side |
| Clamp | Standard | Reversed | Standard | Through Hole (Table Center Hole) | Not Provided |
| Feeding Method (Rack & Pinion) | Standard | Feeding Method (with Vernier Scale) | With Vernier Scale | Number of Blocks | 1 |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
