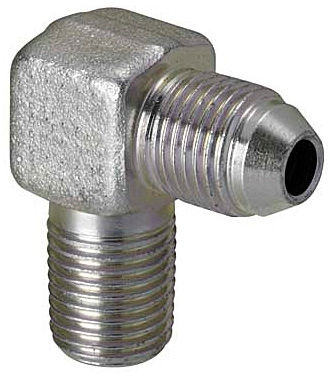

Hydraulic Fittings/90 Deg. Elbow/Male/PT Threaded/PF Threaded
Part Number
Configured Part Number is shown.
| Type | [ M ] Material | [ S ] Surface Treatment |
| YCLPFP | S25C | Trivalent Chromate |
| YCLPFPS | SUS304 | - |
Specifications
| Part Number |
| YCLPT11 |
Part Number
CAD Data download and 3D preview are not available because the part number has not yet been determined.
- *In order to open the CAD Data download and 3D preview screen, the part number must be fixed.
- Please confirm the part number from "Specification / Dimension"on the left side, and then perform the CAD Data Download / 3D Preview operation.
| Part Number |
|---|
| YCLPFP11F |
| YCLPFP22F |
| YCLPFP33F |
| YCLPFP34F |
| YCLPFP64F |
| YCLPFPS11F |
| YCLPFPS22F |
| YCLPFPS23F |
| YCLPFPS34F |
| YCLPFPS44F |
| YCLPFPS66F |

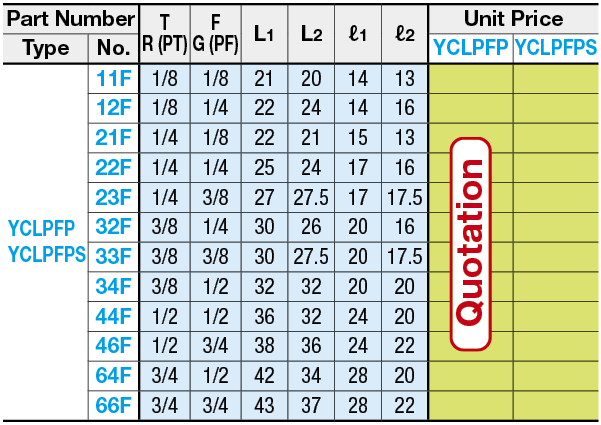

| Part Number | Standard Unit Price | Minimum order quantity | Volume Discount | Days to Ship | RoHS | Material | Nominal of Thread T | Nominal of Thread F/T2 |
|---|---|---|---|---|---|---|---|---|
MYR 13.62 | 1 Piece(s) | Available | 1 Day(s) | 10 | [Steel] S25C | R1/8 | G1/8 | |
MYR 27.72 | 1 Piece(s) | Available | 1 Day(s) | 10 | [Steel] S25C | R1/4 | G1/4 | |
MYR 28.63 | 1 Piece(s) | Available | 1 Day(s) | 10 | [Steel] S25C | R3/8 | G3/8 | |
MYR 34.13 | 1 Piece(s) | Available | 2 Day(s) or more | 10 | [Steel] S25C | R3/8 | G1/2 | |
MYR 52.97 | 1 Piece(s) | Available | 2 Day(s) or more | 10 | [Steel] S25C | R3/4 | G1/2 | |
MYR 62.38 | 1 Piece(s) | Available | 2 Day(s) or more | 10 | SUS304 | R1/8 | G1/8 | |
MYR 62.38 | 1 Piece(s) | Available | 2 Day(s) or more | 10 | SUS304 | R1/4 | G1/4 | |
MYR 130.65 | 1 Piece(s) | Available | 2 Day(s) or more | 10 | SUS304 | R1/4 | G3/8 | |
MYR 161.25 | 1 Piece(s) | Available | 2 Day(s) or more | 10 | SUS304 | R3/8 | G1/2 | |
MYR 97.69 | 1 Piece(s) | Available | 2 Day(s) or more | 10 | SUS304 | R1/2 | G1/2 | |
MYR 174.20 | 1 Piece(s) | Available | 2 Day(s) or more | 10 | SUS304 | R3/4 | G3/4 |
Loading...
Basic Information
| Type | Adapter | Shape | 90° Elbow | Connection Type | Threaded x Threaded |
|---|---|---|---|---|---|
| Connection Type M1 | PT | Connection Type M2 | PF | Shape | Elbow Male |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
