NAKVVSB 100 V or less with Shield

Click this image to zoom it.

Move the mouse over the image to zoom

Volume Discount

MISUMI_Test

For Weak Current Circuit General-purpose Signals Cable with Shield

Oil-Resistant
Strand Wire
Single Shield
Twisted Pair
Less than 100 V

* For cables in stock, please keep in mind that because we cut them to the specified size, they cannot be canceled or returned.
* All unit prices are per meter.
Unit Price Calculation Method
[Formula: Last digits of model number (m) x unit price per meter above]
* Color and softness may vary slightly due to manufacturer changes.

Electrical Appliance and Material Safety Law certificate is not obtained.

Part Number

Configured Part Number is shown.

Product specification
Part Numbers

Specifications

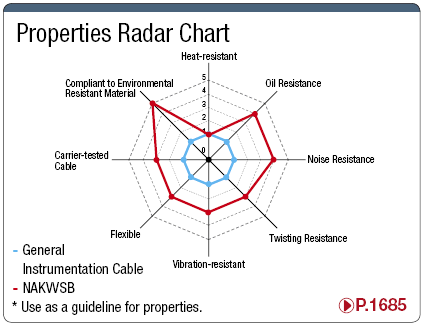

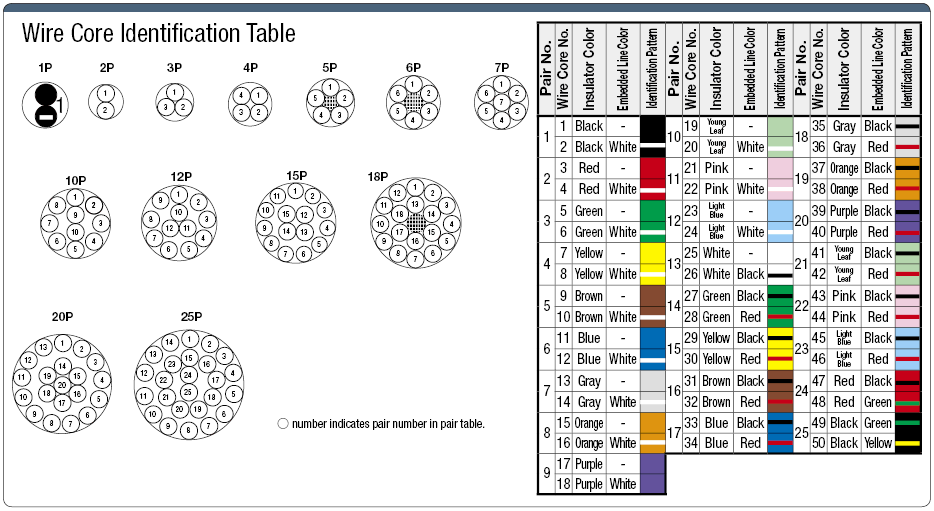

NAKVVSB 100 V or less with Shield:Related Image

Model Number	Section Area (mm²)	Number of Pairs ^*4 1P = 2 Cores	Total Length ^*3 or Specified Length
Model Number	Section Area (mm²)	Number of Pairs ^*4 1P = 2 Cores	Total Length ^*3 or Specified Length
NAKVVSB	0.2	1P	1 ~ 100 (Specify 1 m Increment) / 500 / 1000
		2P
		3P
		4P
		5P
		6P
		7P
		10P
		12P
		15P
		18P
		20P
		25P
	0.3	1P
		2P
		3P
		4P
		5P
		6P
		7P
		10P
		12P
		15P
		18P
		20P
		25P
	0.5	1P
		2P
		3P
		4P
		5P
		6P
		7P
		10P
		12P
		15P
		18P
		20P

Be sure to read the following precautions when you place an order.
* Length in "m" is included in our model numbers. Always specify quantity as number of units, not as meters.
* For the latest information regarding standard unit price, quantity slide unit price, shipment days, etc., refer to the Misumi VONA e-catalog.
*1 Stock products are indicated with T or A in the price column at right.
*2 All unit prices above are per meter.
Unit Price Calculation Method [Formula: Last digits of model number (m) x unit price per meter above]
*3 Please note that when ordering 1000 m and 500 m, the order will be delivered as 100 m windings (we cannot accept orders for single cables).
*4 Check the indications for number of cores, pair number, core / pair number, and pair number / core when ordering. (Refer to the specifications table for number of wire cores.) 1P (1 PS) is "x 2-core".

More Information

Specifications

Model Number	Section Area ( mm²)^*1	Number of Pairs ^*1 1P = 2 Cores	AWG Estimated Size ^*2	Twisted Structure (See Figure)	Number of Wire Cores	Finished Outer Diameter (mm)	Approximate Mass kg/km	Electrical Properties				Conductor			Insulation		Wire Core Outer Diameter Approx. (mm)	Sheath		Specification	Sample Provided^{* 5}
Model Number	Section Area ( mm²)^*1	Number of Pairs ^*1 1P = 2 Cores	AWG Estimated Size ^*2	Twisted Structure (See Figure)	Number of Wire Cores	Finished Outer Diameter (mm)	Approximate Mass kg/km	Allowable Current A (30°C)^{* 3}	Conductor Resistance Ω / km (20°C)	Insulation Properties MΩkm (20°C)	Withstand Voltage V / Min	Structure Strands / mm	Outer Diameter Approx. (mm)	Plating ^*4	Thickness (mm)	Material ^*4	Wire Core Outer Diameter Approx. (mm)	Thickness (mm)	Material ^*4	Specification	Sample Provided^{* 5}
NAKVVSB	0.2	1P	25	Twisted Pair	2	4.6	30	3.5	121 or less	10	1000	7/0.18	0.54	Tin	0.25	PVC	1.04	0.90	PVC	N/A	◎
		2P			4	5.9	45	2.8										1.00			◎
		3P			6	6.1	52	2.3										1.00			◎
		4P			8	6.5	60	2.0										1.00			◎
		5P			10	7.0	70	1.9										1.00			◎
		6P			12	7.4	79	1.7										1.00			◎
		7P			14	7.4	83	1.6										1.00			◎
		10P			20	9.4	114	1.4										1.20			◎
		12P			24	9.7	133	1.3										1.20			◎
		15P			30	10.5	156	1.2										1.20			◎
		18P			36	11.0	177	1.1										1.20			◎
		20P			40	11.7	197	1.0										1.30			◎
		25P			50	13.0	239	0.9										1.40			◎
	0.3	1P	23		2	5.1	37	5.1	71.1 or less	10	1000	12/0.18	0.72		0.29		1.30	0.90			◎
		2P			4	6.7	59	4.0										1.00			◎
		3P			6	6.9	68	3.4										1.00			◎
		4P			8	7.5	82	3.0										1.00			◎
		5P			10	8.0	94	2.7										1.00			◎
		6P			12	8.9	113	2.5										1.10			◎
		7P			14	8.9	120	2.3										1.10			◎
		10P			20	11.0	174	2.1										1.20			◎
		12P			24	11.3	192	1.9										1.20			◎
		15P			30	12.8	228	1.8										1.40			◎
		18P			36	13.4	265	1.6										1.40			◎
		20P			40	14.0	292	1.5										1.40			◎
		25P			50	15.8	357	1.4										1.60			◎
	0.5	1P	21		2	5.7	50	7.2	41.9 or less	10	1000	20/0.18	0.93		0.30		1.53	1.00			◎
		2P			4	7.4	72	5.6										1.00			◎
		3P			6	7.7	87	4.7										1.00			◎
		4P			8	8.5	109	4.2										1.10			◎
		5P			10	9.4	131	3.9										1.20			◎
		6P			12	10.1	150	3.6										1.20			◎
		7P			14	10.1	163	3.3										1.20			◎
		10P			20	12.4	224	3.0										1.30			◎
		12P			24	13.2	261	2.7										1.40			◎
		15P			30	14.4	310	2.5										1.40			◎
		18P			36	15.5	368	2.3										1.60			◎
		20P			40	16.2	402	2.2										1.60			◎

*1 Please note that when the indicated Core / Pair is 1P (1PS), the number of wire cores will be "x 2-core".
*2 The size conversion is for reference only. Refer to the comparison table on >>Click here for details.
*3 The value of allowable current is to be used only as a reference value and is not guaranteed.
*4 How to View Materials
[Plating] Tin... Tin Plated Annealed Copper Wire
[Materials] PVC... Polyvinyl Chloride; PE... Polyethylene-based Material;
P... Polyester-based Material; Fluorine... Various Fluorine Resins; *... Other

Current Reduction Factor

Ambient Temperature (°C)	30 or less	40	50	60	70
Current Reduction Factor	1.00	0.88	0.75	0.58	0.33

Allowable current value indicates the calculated value of 1 cable laid aboveground in ambient temperature of 30°C, and is not a guaranteed value.
If the ambient temperature is 30 °C or above, the above current reduction factor is multiplied by the allowable current.
(Example) Allowable current value 3.5 x 0.88 = 3.08 (A) when the ambient temperature for 1P 0.2 is 40 °C

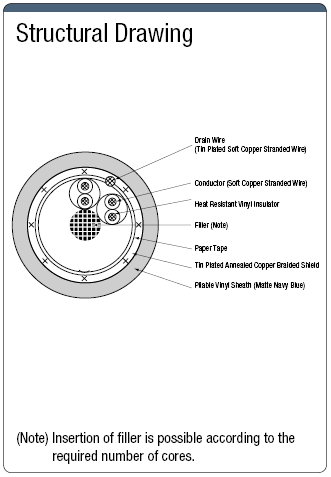

NAKVVSB 100 V or less with Shield:Related Image

: 30; 45; 60

Part Number
NAKVVSB-0.2-1P-18
NAKVVSB-0.2-1P-80
NAKVVSB-0.2-2P-65
NAKVVSB-0.2-2P-74
NAKVVSB-0.2-3P-13
NAKVVSB-0.2-3P-39
NAKVVSB-0.2-3P-68
NAKVVSB-0.2-3P-75
NAKVVSB-0.2-3P-82
NAKVVSB-0.2-3P-90
NAKVVSB-0.2-3P-97
NAKVVSB-0.2-4P-53
NAKVVSB-0.2-4P-59
NAKVVSB-0.2-4P-78
NAKVVSB-0.2-4P-97
NAKVVSB-0.2-5P-15
NAKVVSB-0.2-6P-2
NAKVVSB-0.2-6P-61
NAKVVSB-0.2-7P-64
NAKVVSB-0.2-10P-6
NAKVVSB-0.2-10P-97
NAKVVSB-0.2-12P-37
NAKVVSB-0.2-12P-46
NAKVVSB-0.2-12P-59
NAKVVSB-0.2-12P-77
NAKVVSB-0.2-12P-81
NAKVVSB-0.2-15P-25
NAKVVSB-0.2-15P-95
NAKVVSB-0.2-15P-96
NAKVVSB-0.2-18P-89
NAKVVSB-0.3-2P-93
NAKVVSB-0.3-3P-50
NAKVVSB-0.3-3P-64
NAKVVSB-0.3-3P-76
NAKVVSB-0.3-4P-51
NAKVVSB-0.3-4P-72
NAKVVSB-0.3-4P-93
NAKVVSB-0.3-5P-95
NAKVVSB-0.3-6P-54
NAKVVSB-0.3-6P-59
NAKVVSB-0.3-6P-78
NAKVVSB-0.3-6P-85
NAKVVSB-0.3-7P-56
NAKVVSB-0.3-7P-66
NAKVVSB-0.3-10P-100
NAKVVSB-0.3-12P-43
NAKVVSB-0.3-12P-48
NAKVVSB-0.5-1P-25
NAKVVSB-0.5-1P-73
NAKVVSB-0.5-2P-81
NAKVVSB-0.5-3P-33
NAKVVSB-0.5-3P-53
NAKVVSB-0.5-3P-82
NAKVVSB-0.5-4P-30
NAKVVSB-0.5-4P-44
NAKVVSB-0.5-5P-71
NAKVVSB-0.5-6P-47
NAKVVSB-0.5-6P-67
NAKVVSB-0.5-6P-87
NAKVVSB-0.5-7P-27

Standard Unit Price	Minimum order quantity	Volume Discount	Days to Ship	Overall Length (m)	Conductor Cross Section (mm²)	AWG size (AWG)	Logarithm	Finished outer diameter (mm)
MYR 107.00	1 Piece(s)		2 Day(s) or more	18	0.2	25	1P	4.6
MYR 428.00	1 Piece(s)		2 Day(s) or more	80	0.2	25	1P	4.6
MYR 593.07	1 Piece(s)		2 Day(s) or more	65	0.2	25	2P	5.9
MYR 670.54	1 Piece(s)		2 Day(s) or more	74	0.2	25	2P	5.9
MYR 184.31	1 Piece(s)		2 Day(s) or more	13	0.2	25	3P	6.1
MYR 485.71	1 Piece(s)		2 Day(s) or more	39	0.2	25	3P	6.1
MYR 821.89	1 Piece(s)		2 Day(s) or more	68	0.2	25	3P	6.1
MYR 903.04	1 Piece(s)		2 Day(s) or more	75	0.2	25	3P	6.1
MYR 984.19	1 Piece(s)		2 Day(s) or more	82	0.2	25	3P	6.1
MYR 1,076.93	1 Piece(s)		2 Day(s) or more	90	0.2	25	3P	6.1
MYR 1,158.07	1 Piece(s)		2 Day(s) or more	97	0.2	25	3P	6.1
MYR 802.79	1 Piece(s)		2 Day(s) or more	53	0.2	25	4P	6.5
MYR 889.87	1 Piece(s)		2 Day(s) or more	59	0.2	25	4P	6.5
MYR 1,165.62	1 Piece(s)		2 Day(s) or more	78	0.2	25	4P	6.5
MYR 1,441.36	1 Piece(s)		2 Day(s) or more	97	0.2	25	4P	6.5
MYR 344.70	1 Piece(s)		3 Day(s) or more	15	0.2	25	5P	7
MYR 73.05	1 Piece(s)		2 Day(s) or more	2	0.2	25	6P	7.4
MYR 1,236.58	1 Piece(s)		2 Day(s) or more	61	0.2	25	6P	7.4
MYR 1,398.95	1 Piece(s)		2 Day(s) or more	64	0.2	25	7P	7.4
MYR 215.62	1 Piece(s)		2 Day(s) or more	6	0.2	25	10P	9.4
MYR 2,975.96	1 Piece(s)		2 Day(s) or more	97	0.2	25	10P	9.4
MYR 1,319.64	1 Piece(s)		2 Day(s) or more	37	0.2	25	12P	9.7
MYR 1,632.47	1 Piece(s)		2 Day(s) or more	46	0.2	25	12P	9.7
MYR 2,084.32	1 Piece(s)		2 Day(s) or more	59	0.2	25	12P	9.7
MYR 2,709.96	1 Piece(s)		2 Day(s) or more	77	0.2	25	12P	9.7
MYR 2,848.98	1 Piece(s)		2 Day(s) or more	81	0.2	25	12P	9.7
MYR 1,033.84	1 Piece(s)		2 Day(s) or more	25	0.2	25	15P	10.5
MYR 3,834.53	1 Piece(s)		2 Day(s) or more	95	0.2	25	15P	10.5
MYR 3,874.52	1 Piece(s)		2 Day(s) or more	96	0.2	25	15P	10.5
MYR 4,236.47	1 Piece(s)		2 Day(s) or more	89	0.2	25	18P	11
MYR 998.28	1 Piece(s)		2 Day(s) or more	93	0.3	23	2P	6.7
MYR 757.12	1 Piece(s)		2 Day(s) or more	50	0.3	23	3P	6.9
MYR 959.69	1 Piece(s)		2 Day(s) or more	64	0.3	23	3P	6.9
MYR 1,133.33	1 Piece(s)		2 Day(s) or more	76	0.3	23	3P	6.9
MYR 947.20	1 Piece(s)		2 Day(s) or more	51	0.3	23	4P	7.5
MYR 1,323.38	1 Piece(s)		2 Day(s) or more	72	0.3	23	4P	7.5
MYR 1,699.55	1 Piece(s)		2 Day(s) or more	93	0.3	23	4P	7.5
MYR 2,033.52	1 Piece(s)		2 Day(s) or more	95	0.3	23	5P	8
MYR 1,378.63	1 Piece(s)		2 Day(s) or more	54	0.3	23	6P	8.9
MYR 1,503.17	1 Piece(s)		2 Day(s) or more	59	0.3	23	6P	8.9
MYR 1,976.42	1 Piece(s)		2 Day(s) or more	78	0.3	23	6P	8.9
MYR 2,150.77	1 Piece(s)		2 Day(s) or more	85	0.3	23	6P	8.9
MYR 1,771.58	1 Piece(s)		3 Day(s) or more	56	0.3	23	7P	8.9
MYR 2,084.52	1 Piece(s)		3 Day(s) or more	66	0.3	23	7P	8.9
MYR 3,617.62	1 Piece(s)	Available	2 Day(s) or more	100	0.3	23	10P	11
MYR 1,840.27	1 Piece(s)		2 Day(s) or more	43	0.3	23	12P	11.3
MYR 2,050.34	1 Piece(s)		2 Day(s) or more	48	0.3	23	12P	11.3
MYR 222.91	1 Piece(s)		2 Day(s) or more	25	0.5	21	1P	5.7
MYR 595.12	1 Piece(s)		2 Day(s) or more	73	0.5	21	1P	5.7
MYR 1,086.81	1 Piece(s)		Quote	81	0.5	21	2P	7.4
MYR 604.59	1 Piece(s)		2 Day(s) or more	33	0.5	21	3P	7.7
MYR 950.63	1 Piece(s)		2 Day(s) or more	53	0.5	21	3P	7.7
MYR 1,452.41	1 Piece(s)		2 Day(s) or more	82	0.5	21	3P	7.7
MYR 685.40	1 Piece(s)		2 Day(s) or more	30	0.5	21	4P	8.5
MYR 989.58	1 Piece(s)		2 Day(s) or more	44	0.5	21	4P	8.5
MYR 1,840.74	1 Piece(s)		2 Day(s) or more	71	0.5	21	5P	9.4
MYR 1,405.01	1 Piece(s)		2 Day(s) or more	47	0.5	21	6P	10.1
MYR 1,988.58	1 Piece(s)		2 Day(s) or more	67	0.5	21	6P	10.1
MYR 2,572.16	1 Piece(s)		2 Day(s) or more	87	0.5	21	6P	10.1
MYR 922.04	1 Piece(s)		2 Day(s) or more	27	0.5	21	7P	10.1

Basic Information

Rated Voltage	For Low Current Circuits	Shield	Present	Properties	Oil resistance
Sheath (outer coating) color	Navy color	Sheath (outer coating) material	PVC	Insulation body materials	PVC
Power supply/signal	For signals	Other properties	Noise Resistance
