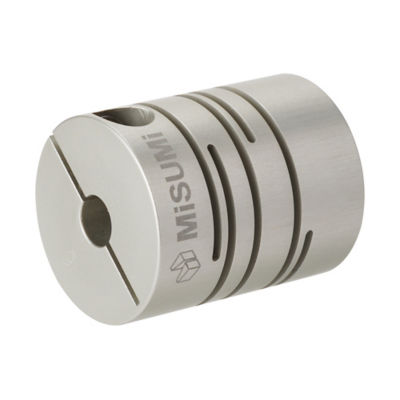

MST/MSTS flexible coupling slit type (MSTS-32-10-14)

MST/MSTS flexible coupling slit type MSTS-32-10-14

NBK

NBK

Backlash "0." Design of aluminum alloy slit pattern changed to improve performance.

[Features]
· Metal spring coupling with perfectly integrated structure, with slit in cylindrical material.
Leaf spring formed with a slit allows eccentricity, angle deviation, and end play.
· 2 kinds available: aluminum alloy / all stainless steel type.
· Wide range of outer diameters, ø8 to ø63

PDF

Part Number

Configured Part Number is shown.

MSTS-32-10-14


30
45
60
  1. 1
Part Number
MSTS-32-10-14
Part NumberStandard Unit PriceMinimum order quantityVolume DiscountDays to ShipAllowable Torque Range
(N•m) 		Shaft Bore Dia. (machined) D1
(Ø) 		Shaft Bore Dia. (machined) D2
(Ø) 		O.D.
(Ø) 		Full Length
(mm) 		Maximum Range of Rotation Number
(r/min) 		Normal Torque
(N•m) 		Max. Rotational Speed
(r/min) 		Allowable Lateral Misalignment
(mm) 		Moment of Inertia
(kg･m2) 		Construction Additional Work

MYR 387.82

1 Piece(s) 5 Day(s) or more 3.01~5.001014324110001~780003.5190000.152.6×10-5Set Screw TypeStandard Shaft Bore

Loading...

  1. 1

Basic Information

Type Slit type Allowable Misalignment Angular Misalignment / Eccentricity / Axial Misalignment Application Standard / Stepping Motor
Features High torsional rigidity / High Torque / Backlash 0 Body Material SUS303 Product Category Coupling body
Allowable Lateral Misalignment Range(mm) 0.02~0.2 Allowable Angular Misalignment(deg) 2 Allowable Axial Misalignment(mm) ±0.5
Keyway NA

Please check the type/dimensions/specifications of the part MSTS-32-10-14 in the MST/MSTS flexible coupling slit type series.
