Push Type Toggle Clamp With Lock Mechanism ST-HTC (Part Numbers)
[Application]
· Used as an assembly, inspection, and welding clamp.
[Features]
· Low-cost compared to other products.
Japanese Only
Part Number
Configured Part Number is shown.
ST-HTC603-L
Push Type Toggle Clamp With Lock Mechanism
ST-HTC603-L external appearance
ST-HTC603-L dimensional drawing
| Main Body | Base | Shaft |
|---|---|---|
| SPCC | SCM440 | S45C |
| Grip | Bolt, Nut | Pad |
| Polyvinyl chloride | SUM41 | Chloroprene rubber (CR) |
| Part Number | S | M | L3 | D | H1 | L | H | W | L2 | L4 | T | d |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ST-HTC603-L | 31.8 | M8 | 25 | 11 | 24 | 123 | 87 | 48 | 52 | 52.1 | 5 | 6.7 |
| Part Number | P | P1 | W1 | L5 | L1 | Clamping Pressure (kN) | Weight (g) |
|---|---|---|---|---|---|---|---|
| ST-HTC603-L | 33 | 36.5 | 7.5 | 7.8 | 81 | 3 | 380 |
| Part Number |
|---|
| ST-HTC603-L |
| Part Number | Standard Unit Price | Minimum order quantity | Volume Discount | Days to Ship |
|---|---|---|---|---|
MYR 165.83 | 1 Piece(s) | 1 Day(s) |
Loading...
Basic Information
| Type | Hold Down Horizontal Handle | Attaching Method | Flanged | Tightening Force (Range Selectable)(N) | 2000 to 3099 |
|---|---|---|---|---|---|
| Body Material | SPCC | Clamp Screw | fixation | Clamp Screw Size | M8 |
| Clamp Screw Material | SUM41 (Bolt, Nut)+Chloroprene Rubber (Pad) | Tightening Force(N) | 3000 | Tip Screw Type | Bolt with Rubber |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
Additional Products in this Category
- Toggle Clamps - Side Push-Pull Free Mounting Direction
- Toggle Clamps - Side Push(Flange Base)
- Toggle Clamps - Side Push-Pull Free Mounting Direction
- Toggle Clamps - Side Push (Flange Base)
- Toggle Clamps - Side Push (Flange Base)
- Toggle Clamps - Side Push (Flange Base)
- Horizontal Push-Type Clamp, No. 02
- Horizontal Push-Type Clamp, No. SL300
Customers Who Viewed This Item Also Viewed
-
-
-
-

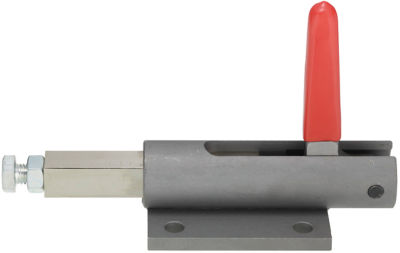

Toggle Clamps - Side Push (Flange Base)
