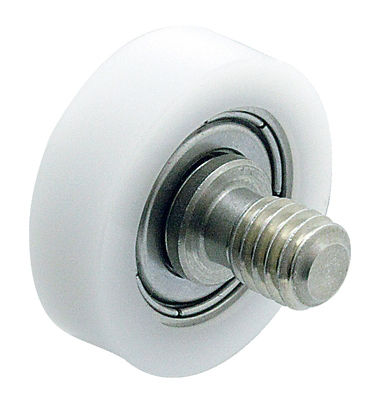

Flat Plastic Guide Rollers (GRL-P-F-SUS)

Flat Plastic Guide Rollers (GRL-P-F-SUS)

Click this image to zoom it.

Move the mouse over the image to zoom

  • Flat Plastic Guide Rollers (GRL-P-F-SUS)
  • Flat Plastic Guide Rollers (GRL-P-F-SUS)

IMAO CORPORATION

IMAO CORPORATION

[Features]
• Low noise thanks to plastic construction.

PDF

Part Number

Configured Part Number is shown.

Flat Plastic Guide Rollers

GRL-P-F-SUS (Without Stud)

GRL-P-F-SUS (Without Stud)

  • · Main body: polyacetal, white
  • Bearing: SUS440C
GRL-M-P-F-SUS (With Stud)

GRL-M-P-F-SUS (With Stud)

  • Main body: polyacetal, white
  • Bearing: SUS440C
  • Stud: SUS303
Application example: the plastic body provides silent running. Ideal as a roller for various sliding doors and carriers, etc. Heat-resistant temperature 105°C.

Application example
The plastic body provides silent running.
Ideal as a roller for various sliding doors and carriers, etc.
Heat-resistant temperature 105°C.

GRL-P-F-SUS (Without Stud) dimensional drawing

GRL-P-F-SUS (Without Stud) dimensional drawing

GRL-M-P-F-SUS (With Stud) dimensional drawing

GRL-M-P-F-SUS (With Stud) dimensional drawing

Part NumberDLdBBearing
No.		Allowable Load
(N)		Mass
(g)
GRL1304P-F-SUS13544SMR104ZZ491.7
GRL1404P-F-SUS141.9
GRL1805P-F-SUS185695HZZ68.63.2
GRL1905P-F-SUS193.4
GRL1906P-F-SUS19665696HZZ984.7
GRL2006P-F-SUS205
GRL2406P-F-SUS246.1
GRL2506P-F-SUS256.4
GRL3008P-F-SUS30987608HZZ19616
GRL3508P-F-SUS3519.1

GRL-P-F-SUS (Without Stud) specifications chart (mm)

Part NumberDLdBML1D1TWBearing
No.		Allowable Load
(N)		Mass
(g)
GRL13M4P-F-SUS13544M4 × 0.7561.52SMR104ZZ492.7
GRL14M4P-F-SUS142.9
GRL18M4P-F-SUS18572.5695HZZ68.64.4
GRL19M4P-F-SUS194.6
GRL19M6P-F-SUS19665M6 × 1881.53696HZZ987.4
GRL20M6P-F-SUS207.6
GRL24M6P-F-SUS248.8
GRL25M6P-F-SUS259.1
GRL30M6P-F-SUS3098710.225608HZZ19620.4
GRL35M6P-F-SUS3523.6

GRL-M-P-F-SUS (With Stud) specifications chart (mm)

30
45
60
  1. 1
Part Number
GRL13M4P-F-SUS
GRL14M4P-F-SUS
GRL18M4P-F-SUS
GRL19M6P-F-SUS
GRL20M6P-F-SUS
GRL25M6P-F-SUS
GRL30M6P-F-SUS
GRL35M6P-F-SUS
GRL1304P-F-SUS
GRL3508P-F-SUS
Part NumberStandard Unit PriceMinimum order quantityVolume DiscountDays to ShipShaft Type O.D.
(Ø) 		Roller Width
(mm)

MYR 80.61

1 Piece(s) 1 Day(s) [Shaft] Type with Bolt135

MYR 80.63

1 Piece(s) 1 Day(s) [Shaft] Type with Bolt145

MYR 79.80

1 Piece(s) 1 Day(s) [Shaft] Type with Bolt185

MYR 79.80

1 Piece(s) 1 Day(s) [Shaft] Type with Bolt196

MYR 79.80

1 Piece(s) 1 Day(s) [Shaft] Type with Bolt206

MYR 80.61

1 Piece(s) 1 Day(s) [Shaft] Type with Bolt256

MYR 86.51

1 Piece(s) 1 Day(s) [Shaft] Type with Bolt309

MYR 86.51

1 Piece(s) 1 Day(s) [Shaft] Type with Bolt359

MYR 62.88

1 Piece(s) 1 Day(s) [No Shaft (Round Hole)] Type without Bolt135

MYR 68.78

1 Piece(s) 1 Day(s) [No Shaft (Round Hole)] Type without Bolt359

Loading...

  1. 1


Basic Information

Roller Type Type F Bearing Single Bearing Material SUS440C
Roller Material Polyacetal Lining Material Without lining Surface Treatment No

Configure

Clear All

10 Part Numbers

View Part Numbers

Configure Remaining Specifications
Completed
loading

Specification/Dimensions

  • Shaft Type

    • No Shaft (Round Hole)
      • Type without Bolt
    • Shaft
