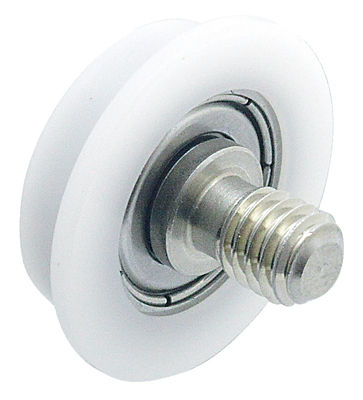

Single-Flanged Plastic Guide Rollers (GRL-P-L-SUS)

Single-Flanged Plastic Guide Rollers (GRL-P-L-SUS)

Click this image to zoom it.

Move the mouse over the image to zoom

  • Single-Flanged Plastic Guide Rollers (GRL-P-L-SUS)
  • Single-Flanged Plastic Guide Rollers (GRL-P-L-SUS)

IMAO CORPORATION

IMAO CORPORATION

[Features]
• Low noise thanks to plastic construction

PDF

Part Number

Configured Part Number is shown.

GRL22M6P-L-SUS

Single-Flanged Plastic Guide Rollers

The plastic body provides silent running. Heat-resistant temperature 105°C. Ideal as rollers for various sliding doors and carriers, etc.
2 types: GRL2206P-L-SUS (Without Stud) and GRL22M6P-L-SUS (With Stud).

GRL2206P-L-SUS (Without Stud)

GRL2206P-L-SUS (Without Stud)

  • Main body: polyacetal, white
  • Bearing: SUS440C
  • Allowable load: 98 N
  • Mass: 4.7 g
GRL2206P-L-SUS (Without Stud) dimensional drawing (mm)

GRL2206P-L-SUS (Without Stud) dimensional drawing (mm)

GRL22M6P-L-SUS (With Stud)

GRL22M6P-L-SUS (With Stud)

  • Main body: polyacetal, white
  • Bearing: SUS440C
  • Stud: SUS303
  • Allowable load: 98 N
  • Mass: 7.4 g
GRL22M6P-L-SUS (With Stud) dimensional drawing (mm)

GRL22M6P-L-SUS (With Stud) dimensional drawing (mm)

30
45
60
  1. 1
Part Number
GRL22M6P-L-SUS
Part NumberStandard Unit PriceMinimum order quantityVolume DiscountDays to Ship

MYR 92.61

1 Piece(s) 1 Day(s)

Loading...

  1. 1


Basic Information

Shaft Type Type with Bolt Roller Type L-Type Bearing Single
Bearing Material SUS440C Roller Material Polyacetal Lining Material Without lining
O.D.(Ø) 22 Surface Treatment No Bottom Dia.(Ø) 18
Roller Width(mm) 6 Allowable Load(N) 98

Please check the type/dimensions/specifications of the part GRL22M6P-L-SUS in the Single-Flanged Plastic Guide Rollers (GRL-P-L-SUS) series.
