Angular cutter with handle

EIKOSHA

Dovetail Grooving

Part Number

Configured Part Number is shown.

Product Specifications
Part Numbers
Catalog

: 30; 45; 60

Part Number
ACS12-75
ACS20-75
ACS30-40
ACS30-50
ACS35-70
ACS80-60-32
ACSW20-W120
ACSW50-W60
ACSW70-W90
ACSW100-W120

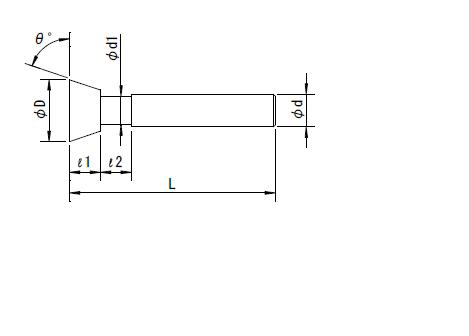

Standard Unit Price	Minimum order quantity	Days to Ship	blade diameter (mm)	Blade thickness (mm)	Single corner (°)	Neck diameter (mm)	Neck length (mm)	Overall Length (mm)	shank diameter (mm)	Number of flutes
MYR 294.94	1 Piece(s)	2 Day(s) or more	12	5	75	5	10	50	8	8
MYR 397.61	1 Piece(s)	3 Day(s) or more	20	7	75	8	12	64	10	10
MYR 673.37	1 Piece(s)	2 Day(s) or more	30	8	40	8	18	76	16	12
MYR 586.26	1 Piece(s)	2 Day(s) or more	30	8	50	11	18	76	16	12
MYR 813.21	1 Piece(s)	2 Day(s) or more	35	13	70	14	18	81	16	12
MYR 5,277.93	1 Piece(s)	2 Day(s) or more	80	25	60	38	25	130	32	22
MYR 408.41	1 Piece(s)	2 Day(s) or more	20	6	W120	8	12	63	10	10
MYR 1,623.54	1 Piece(s)	2 Day(s) or more	50	12	W60	16	22	104	25	16
MYR 4,083.97	1 Piece(s)	2 Day(s) or more	70	22	W90	25	25	130	32	20
MYR 9,068.68	1 Piece(s)	2 Day(s) or more	100	30	W120	30	25	135	32	22

Basic Information

Material	High-speed steel	Blade diameter tolerance	0～+1	blade shape	Right blade straight
Shank tolerance	h8	Angle Tolerance	±15′

Configure

10 Part Numbers

View Part Numbers

Configure Remaining Specifications

Completed

Specification/Dimensions

blade diameter(mm)
12

20

30

35

50

70

80

100
Clear
Blade thickness(mm)
5

6

7

8

12

13

22

25

30
Clear
Single corner(°)
- 40
- 50
- 60
- W60
- 70
- 75
- W90
- W120
Clear
Neck diameter(mm)
5

8

11

14

16

25

30

38
Clear
Neck length(mm)
10

12

18

22

25
Clear
Overall Length(mm)
50

63

64

76

81

104

130

135
Clear
shank diameter(mm)
8

10

16

25

32
Clear
Number of flutes
8

10

12

16

20

22
Clear
type
- ACS
Clear

Days to Ship

All

2 Day(s) or Less

3 Day(s) or Less
Clear

Specify Alterations

The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
