Transformers

The MISUMI eCatalog has single-phase/single-winding, single-phase/multiple-winding, and three-phase/multiple-winding transformers, but also transformers with capacities from 0.0009 kVA to 200 kVA.

[Transformers]
Transformers are also called voltage transforming devices. They convert AC voltages to different voltages using electromagnetic induction. Voltage transformers consist of multiple magnetically coupled coils. The conductor used for the coil is called the winding.
When there are two coils, the coil on the input side is called the primary coil and the coil on the output side is called the secondary coil. When alternating current flows in the primary coil, a time-varying magnetic field is generated, transmitting power to the secondary coil coupled via mutual inductance, when the energy is converted to current again and output.
Changing the voltage by means of a transformer is called transformation. When the voltage is raised it is called a step-up transformer, and when the voltage is lowered it is called a step-down transformer.

5 items

: 30; 45; 60

Days to Ship	All 1 Day(s) or Less 2 Day(s) or Less 3 Day(s) or Less 7 Day(s) or Less

Single-phase compound-wound transformer LD21 Series

TOYOZUMI

Step-down transformer for 200V switching to 100V. We have reached the low-cost goal while maintaining the quality of a Toyozumi production SD21 series. For all equipment types, gap shield is included in P-S to best prevent interference.

Standard Price:	MYR 871.17
Days to Ship:	1 Day(s)

"Same Day Ship Out" is available for item with 1 day

Series with SC21-ELED

SWALLOW ELECTRIC

SC21-EL series, power active with LED illumination. Terminal block (up-screw) cover which is an integral structure of protection cover. Simple wiring without screw-off

CAD ：: 2D

Standard Price:	MYR 1,131.82
Days to Ship:	7 Day(s) or more

"Same Day Ship Out" is available for item with 1 day

Single-phase Compound-wound Transformer AD21 Series

TOYOZUMI

Here is the 200V switching to 100V step-down transformer. Insulation between input and output is unneeded. Therefore it is best for customers who want to decrease the space control panel is taking.

Standard Price:	MYR 1,039.19-
Days to Ship:	2 Day(s) or more

"Same Day Ship Out" is available for item with 1 day

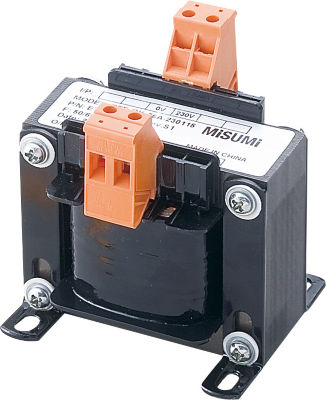

Low-Cost Power Supply Transformer TP10E Series

MISUMI_Test

Primary 0-220 (200), Secondary 0-110 (100) 50 to 500 VA. Same day delivery.

Volume Discount

Standard Price:	MYR 657.96
Days to Ship:	2 Day(s) or more

"Same Day Ship Out" is available for item with 1 day

PC41-E series

SWALLOW ELECTRIC

PC41-E series. Terminal block (up-screw) cover which has become one with protection cover. Work time is sharply shortened than other brand because wiring is available without screw-off.

CAD ：: 2D

Standard Price:	MYR 810.98
Days to Ship:	3 Day(s) or more

"Same Day Ship Out" is available for item with 1 day


Brand
Product Series
CAD
Days to Ship
Number of phases/winding
Capacity(kVA)
Primary voltage(V)
Secondary voltage(V)
Shield presence
Insulation type
Input/output terminal shape
With/without Case
Dimension vertical(mm)
Dimension width(mm)
Dimension depth(mm)


Brand	TOYOZUMI	SWALLOW ELECTRIC	TOYOZUMI	MISUMI_Test	SWALLOW ELECTRIC
Product Series	Single-phase compound-wound transformer LD21 Series	Series with SC21-ELED	Single-phase Compound-wound Transformer AD21 Series	Low-Cost Power Supply Transformer TP10E Series	PC41-E series
CAD		2D			2D
Days to Ship	1 Day(s)	7 Day(s) or more	2 Day(s) or more	2 Day(s) or more	3 Day(s) or more
Number of phases/winding	Single-phase/Double-winding	Single-phase/Double-winding	Single-phase/single-winding	Single-phase/Double-winding	Single-phase/Double-winding
Capacity(kVA)	0.5	0.75	1 ～ 2	0.5	0.75
Primary voltage(V)	220	AC200-220	240	0-230/220	AC380-400-440
Secondary voltage(V)	110	AC100-110	115	0-115/110	AC100-110
Shield presence	Available	Available	NA	Available	Available
Insulation type	E Type	E Type	B Type	B Type	E Type
Input/output terminal shape	Screw terminal block	Up screw type terminal block	Screw terminal block	Up screw type terminal block	Up screw type terminal block
With/without Case	NA	NA	NA	NA	NA
Dimension vertical(mm)	112.5	150	111 ～ 127	114	145
Dimension width(mm)	122	146	122 ～ 157	122	146
Dimension depth(mm)	123	145	123 ～ 150	109	150
