Oil Free Bushings（Page2）
-
Dydine Bushing with Flange DDK05 series
DAIDO METAL
Compound bearing (flanged bushing type ) with low friction characteristics and that optimizes metal properties such as strength and dimensional stability.
[Features]
· The bearing surface has such a low coefficient of static and dynamic friction so that the surface runs smoothly without lubrication.
· So-called "StickSlip" does not occur.
· Also safe to use in oil.
· Can be used within a temperature range of -200°C to +280°C.
· Adaptable to operations under high-load, impact load, intermittent operation and reciprocating motion.
· Free from electrostatic induction (when installed, each bearing has an electrical resistance of 1 to 10 Ω per 1cm2).
· Bearing surface has superior chemical resistance. It is also not affected by solvents, such as petroleum and alcohol.
· Will not damage the surface of the engaging component.
· Extended surface life.
· Bearing is lightweight and thin (3 mm at its thickest), so it does not require much space. In other words, the design is more compact.
· Minimizes operating noise.Standard Price: MYR 8.41- Days to Ship: 1 Day(s) or more -
ARF Type Sleeve Bearing with Flange
NTN
ARF is a product with flange that is fabricated from rod or pipe material of Berry FL3000. Can also receive axial loads and is available with an internal diameter of 3 mm to 50 mm.
Standard Price: MYR 10.50- Days to Ship: 1 Day(s) -
Oil Free Bushing - Multi-Layer Type with Flange
ZOB
Multi-layer type flanged oil free bushing designed with cost in mind.
Standard Price: MYR 14.88- Days to Ship: 1 Day(s) -
Oil Free Bushings - Bronze, Standard Flanged Housing Units - Compact Flange
MISUMI_Test
- Volume Discount
Standard Price: MYR 36.49- Days to Ship: 1 Day(s) or more -
Standard Price: MYR 25.89- Days to Ship: 2 Day(s) or more -
Oil Free Bushings - Center Flanged Housing Units (Built-In Copper Alloy Bushings
MISUMI_Test
- Volume Discount
Standard Price: MYR 310.73- Days to Ship: 2 Day(s) or more -
Oiles Cermet M Flange Bushing (54F)
OILES
Provides high friction resistance when oil film formation is discouraged due to reciprocating motion, intermittent operation, and swing motion.
- CAD ：
- 2D
Standard Price: MYR 34.57 Days to Ship: 1 Day(s) -
Standard Price: MYR 10.07- Days to Ship: 1 Day(s) -
MISUMI_Test
- Volume Discount
Standard Price: MYR 111.82- Days to Ship: 2 Day(s) or more -
Oiles Glitron SE Bushing (GEB)
OILES
Various sizes of standard products corresponding to miniature bearings are prepared.
- CAD ：
- 2D
Standard Price: MYR 9.03 Days to Ship: 1 Day(s) -
Oiles Tough Met D Bushing (TMDB)
OILES
Makes excellent durability and stable and low friction coefficient under refueling environment a reality.
- CAD ：
- 2D
Standard Price: MYR 74.00 Days to Ship: 21 Day(s) or more -
NTN
ARE is a product that achieved zero emissions to the environment by applying auto mold processing to Berry FL3000. AR is a product fabricated from rod or pipe material of Berry FL3000.
Standard Price: MYR 30.00 Days to Ship: 1 Day(s) -
NTN
Product specifications, product photos, and product catalogs, etc., are currently being finalized.
Standard Price: MYR 11.28 Days to Ship: 2 Day(s) or more -
Oil Free Bushing - Copper Alloy Type with Flange
ZOB
A copper alloy flanged type oil free bushing designed with cost in mind.
Standard Price: MYR 27.53- Days to Ship: 2 Day(s) or more -
MISUMI_Test
- Volume Discount
Standard Price: MYR 177.83 Days to Ship: 2 Day(s) or more -
Oiles #500SP Thrust Bushing (SPFG)
OILES
Demonstrates high performance at high load and low speed movement positions.
[Features]
· Suitable for rotation, swing and reciprocating motions.
· One bushing can bear radial journal load and thrust load at the same time.
· Machinery accuracy can be improved by increasing the flange thickness accuracy- CAD ：
- 2D
Standard Price: MYR 173.22- Days to Ship: 1 Day(s) or more -
Oiles Glitron F Flange Bushing (77F)
OILES
Has a low friction coefficient, and does not experience stick slip. Can also be used in a wide range of temperatures from low to high.
[Features]
· Can be used without any oil.
· Low static friction coefficient on start-up and no stick slips during operation.
· Maintains high abrasion resistance and low friction coefficient, even under high-speed conditions.
· Can also be used in a wide range of temperatures, from low to high.
· Product has superior chemical resistance property and complies with the Food Sanitation Act.
· Mild metals (aluminum, etc.) can be used as mating shafts.
· Excellent in turning machinability.
· Various sizes of standard products and materials for machining are available- CAD ：
- 2D
Standard Price: MYR 9.06- Days to Ship: 1 Day(s) -
OILES
Has a low friction coefficient, and does not experience stick slip. Can also be used in a wide range of temperatures from low to high.
- CAD ：
- 2D
Standard Price: MYR 6.02- Days to Ship: 1 Day(s) -
Oiles Glitron SE Flange Bushing (GEF)
OILES
Low friction coefficient and superior abrasion resistance. Also offers superior chemical resistance.
- CAD ：
- 2D
Standard Price: MYR 11.46- Days to Ship: 1 Day(s) -
DAIBEST Bushing with Flange DBS02 series
DAIDO METAL
Oil-retaining bearing (flanged bushing) with self-lubricating characteristics.
Standard Price: MYR 3.69- Days to Ship: 2 Day(s) or more -
DAIDO METAL
Pre-lubricated bearing. Be sure to fill with lubricant when installing.
[Features]
· Quiet operation free of squeaking or knocking.
· Low friction characteristics prevents damage to the shaft (mating surface).
· The bearing surface remains virtually wear-free with minimum amount of lubricant (grease or oil).
· The frictional force at startup is extremely low.
· This enables smooth rotation at startup and at low speed under high load conditions.
· Superior non-seizure properties.
· Shaft misalignment tolerance is excellent.
· Can withstand impact loads.
· Excellent load-carrying performance even under oscillating and fretting conditionsStandard Price: MYR 11.74 Days to Ship: 2 Day(s) or more -
DAIDO METAL
Metal-based oil free bearing in which a solid lubricant (graphite) is finely and uniformly dispersed into a bronze base metal.
D type is a general use grade of Thermalloy, which can be used under a wide range of conditions.Standard Price: MYR 50.36- Days to Ship: 2 Day(s) or more -
Standard Price: MYR 116.42 Days to Ship: 2 Day(s) or more -
Standard Price: MYR 145.68 Days to Ship: 2 Day(s) or more -

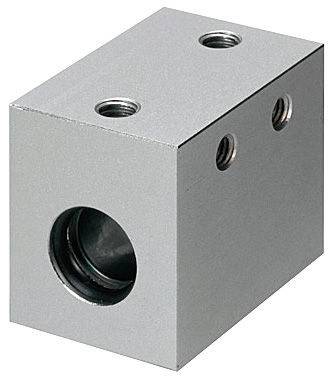

Oil Free Bushing Housing Units - Blocks - Built-In Multi-Layer LF Bushings - Tall Blocks
MISUMI_Test
- Volume Discount
Standard Price: MYR 83.31- Days to Ship: 2 Day(s) or more -
Standard Price: MYR 81.21- Days to Ship: 2 Day(s) or more -
Standard Price: MYR 77.60 Days to Ship: 1 Day(s) -
Oiles Glitron SE Flange Bushing (GSF)
OILES
Low friction coefficient and superior abrasion resistance. Also offers superior chemical resistance.
- CAD ：
- 2D
Standard Price: MYR 5.46 Days to Ship: 1 Day(s) -
Oiles Glitron SE Bushing (GSB)
OILES
Various sizes of standard products corresponding to miniature bearings are prepared.
- CAD ：
- 2D
Standard Price: MYR 4.73 Days to Ship: 1 Day(s) -
Oiles Drymet LF (t0.5) Flange Bushing (LFCF)
OILES
[Features]
· The thickness of the bearing is as thin as 0.5 mm.
· Now it is possible to use a bearing in a small space where it wasn't possible before.
· Can maintain a stable friction coefficient since resin that includes special additive is used in the sliding layer.
· Effective as countermeasure against abnormal sounds and friction at no bushing portions.- CAD ：
- 2D
Standard Price: MYR 4.58- Days to Ship: 1 Day(s) -
NTN
Product specifications, product photos, and product catalogs, etc., are currently being finalized.
Standard Price: MYR 4.21 Days to Ship: 1 Day(s)
| Brand |
|---|
| Product Series |
| CAD |
| Days to Ship |
| Type |
| Metal Type |
| Resin Type |
| Multi-layer |
| Environment |
| Inner Dia. d(Ø) |
| Outer Dia. D(Ø) |
| Overall Length L(mm) |
| Max. Allowable PV Value Range(N/mm2•m/s) |
| Max. Allowable PV Value(N/mm2•m/s) |
| Max. Allowable Surface Pressure P(N/mm2) |
| Max. Allowable Velocity V(m/s) |
| Case Shape |
| Case Material |
| Length Type |
| Mounting Shaft Fits |
| Mounting Hole Fits |
| Thickness t(mm) |
| Lubrication |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |||||
| Brand | DAIDO METAL | NTN | ZOB | MISUMI_Test | MISUMI_Test | MISUMI_Test | OILES | OILES | MISUMI_Test | OILES | OILES | NTN | NTN | ZOB | MISUMI_Test | OILES | OILES | OILES | OILES | DAIDO METAL | DAIDO METAL | DAIDO METAL | MISUMI_Test | MISUMI_Test | MISUMI_Test | MISUMI_Test | OILES | OILES | OILES | OILES | NTN |
| Product Series | Oil Free Bushings - Bronze, Standard Flanged Housing Units - Compact Flange | Oil Free Bushings - Center Flanged Housing Units (Built-In Copper Alloy Bushings | Oil Free Bushing Housing Units - Blocks - Tall Blocks Compact Type | Oil Free Bushing Housing Units - Blocks - Built-In Multi-Layer LF Bushings - Tall Blocks | |||||||||||||||||||||||||||
| CAD |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| ||||
| Days to Ship | 1 Day(s) or more | 1 Day(s) | 1 Day(s) | 1 Day(s) or more | 2 Day(s) or more | 2 Day(s) or more | 1 Day(s) | 1 Day(s) | 2 Day(s) or more | 1 Day(s) | 21 Day(s) or more | 1 Day(s) | 2 Day(s) or more | 2 Day(s) or more | 2 Day(s) or more | 1 Day(s) or more | 1 Day(s) | 1 Day(s) | 1 Day(s) | 2 Day(s) or more | 2 Day(s) or more | 2 Day(s) or more | 2 Day(s) or more | 2 Day(s) or more | 2 Day(s) or more | 2 Day(s) or more | 1 Day(s) | 1 Day(s) | 1 Day(s) | 1 Day(s) | 1 Day(s) |
| Type | Flanged Type | Flanged Type | Flanged Type | Standard/Pilot/Center-Flanged Type | Straight/sleeve | Standard/Pilot/Center-Flanged Type | Flanged Type | Straight/sleeve | Standard/Pilot/Center-Flanged Type | Straight/sleeve | Straight/sleeve | Straight/sleeve | - | Flanged Type | Housing Unit Type | Flanged Type | Flanged Type | Straight/sleeve | Flanged Type | Flanged Type | Straight/sleeve | Straight/sleeve | Housing Unit Type | Housing Unit Type | Housing Unit Type | Standard/Pilot/Center-Flanged Type | Standard/Pilot/Center-Flanged Type | Flanged Type | Straight/sleeve | Flanged Type | - |
| Metal Type | - | - | - | Bronze | Brass | Brass | Sintered Steel | - | Brass | - | - | - | - | Brass | Brass | Brass | - | - | - | - | - | Bronze | - | - | - | Brass | - | - | - | - | - |
| Resin Type | - | PTFE (Polytetrafluoroethylene) | - | - | - | - | - | - | - | Polyphenylenesulfide | - | PTFE (Polytetrafluoroethylene) | - | - | - | - | PTFE (Polytetrafluoroethylene) | PTFE (Polytetrafluoroethylene) | Polyphenylenesulfide | POM (Polyacetal) | POM (Polyacetal) | - | - | - | - | - | - | Polyphenylenesulfide | Polyphenylenesulfide | - | - |
| Multi-layer | Steel, Sintered Bronze, Polytetrafluoroethylene | - | Steel, Sintered Bronze, Polytetrafluoroethylene | - | - | - | - | Steel, Copper Type Sintered Alloy | - | - | Steel, Copper Type Sintered Alloy | - | - | - | - | - | - | - | - | - | - | - | Steel, Sintered Bronze, Polytetrafluoroethylene | Polyacetal | Steel, Sintered Bronze, Polytetrafluoroethylene | - | Steel, Sintered Bronze, Polytetrafluoroethylene | - | - | Steel, Sintered Bronze, Polytetrafluoroethylene | - |
| Environment | Standard / In Oil | Standard / Heat Resistant / In Oil / In Water / In Seawater / In Chemical | Standard / In Oil | - | - | - | Standard | Standard / Heat Resistant / In Oil | - | Standard / In Water / In Seawater / In Chemical | Standard / Foreign Object Resistant / In Oil | Standard / Heat Resistant / In Oil / In Water / In Seawater / In Chemical | - | Standard / In Oil | - | Standard / Heat Resistant / Foreign Object Resistant | Standard / Heat Resistant / In Water / In Seawater / In Chemical | Standard / Heat Resistant / In Water / In Seawater / In Chemical | Standard / In Water / In Seawater / In Chemical | Standard | Standard / Foreign Object Resistant / Vibration Resistant | Foreign Object Resistant / In Water | - | Conformance to Food Sanitation Law | - | - | Standard / In Oil | Standard / In Water / In Seawater / In Chemical | Standard / In Water / In Seawater / In Chemical | Standard / In Oil | - |
| Inner Dia. d(Ø) | 3 ～ 28 | 4 ～ 25 | 10 ～ 25 | 6 ～ 30 | 12 ～ 30 | 25 ～ 30 | 4 | 6 ～ 20 | 10 ～ 50 | 5 | 35 | 15 | - | 6 ～ 50 | 16 | 12 ～ 25 | 4 ～ 25 | 4 ～ 20 | 12 ～ 20 | 10 | 16 | 6 ～ 50 | 10 | 8 | 6 ～ 10 | 12 ～ 30 | 16 | 8 | 8 | 5 ～ 10 | - |
| Outer Dia. D(Ø) | 4.6 ～ 32 | 7 ～ 31 | 12 ～ 28 | 10 ～ 38 | 18 ～ 38 | 40 ～ 45 | 7 | 8 ～ 23 | 19 ～ 80 | 8 | 39 | 21 | - | 10 ～ 60 | - | 18 ～ 33 | 7 ～ 31 | 7 ～ 26 | 16 ～ 25 | 12 | 19 | 10 ～ 62 | - | - | 8 ～ 12 | 18 ～ 38 | 28 | 12 | 16 | 6 ～ 11 | - |
| Overall Length L(mm) | 5 ～ 25 | 6 ～ 30 | 10 ～ 25 | 15 ～ 40 | 20 | 108 ～ 128 | 5.5 | 6 ～ 20 | 57 ～ 150 | 5 | 30 | 15 | - | 10 ～ 60 | 42 | 11 ～ 20 | 6 ～ 20 | 5 ～ 15 | 8 ～ 12 | 6 ～ 10 | 15 | 6 ～ 60 | 39 | 32 | 27 ～ 62 | 25 ～ 70 | 37 | 3.5 | 5 | 5.5 ～ 6.5 | - |
| Max. Allowable PV Value Range(N/mm2•m/s) | 1.1~2.0 | 0.3~1.0 | 2.1~5.0 | 1.1~2.0 | 1.1~2.0 | 1.1~2.0 | 1.1~2.0 | 1.1~2.0 | 1.1~2.0 | 0.3~1.0 | 2.1~5.0 | 0.3~1.0 | - | 1.1~2.0 | 1.1~2.0 | 1.1~2.0 | 0.3~1.0 | 0.3~1.0 | 0.3~1.0 | 2.1~5.0 | 2.1~5.0 | - | 2.1~5.0 | 2.1~5.0 | 2.1~5.0 | 1.1~2.0 | 2.1~5.0 | 0.3~1.0 | 0.3~1.0 | 2.1~5.0 | - |
| Max. Allowable PV Value(N/mm2•m/s) | 1.72 | 1 | 3.6 | 1.65 | 1.65 | 1.65 | 1.65 | 1.65 | 1.65 | 0.65 | 3.26 | 1 | - | 1.65 | 1.65 | 1.65 | 1 | 1 | 0.65 | 2.45 | - | - | 3.6 | 2.45 | 3.6 | 1.65 | 3.6 | 0.65 | 0.65 | 3.6 | - |
| Max. Allowable Surface Pressure P(N/mm2) | 137 | - | - | 10 | 29 | 29 | 10 | 24.5 | 29 | 14.5 | 50 | - | - | - | 29 | 29 | 7 | 7 | 14.5 | 17.5 | - | - | 49 | 17.5 | 49 | 29 | 49 | 14.5 | 14.5 | 49 | - |
| Max. Allowable Velocity V(m/s) | 1 | - | 0.65 | 1.66 | 0.5 | 0.5 | 0.85 | 0.4 | 0.5 | 2.5 | 1 | - | - | 0.5 | 0.5 | 0.5 | 1.65 | 1.65 | 2.5 | 0.85 | - | - | 0.65 | 0.85 | 0.65 | 0.5 | 0.65 | 2.5 | 2.5 | 0.65 | - |
| Case Shape | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | Square Flange | - | - | - | - |
| Case Material | - | - | - | - | - | Steel | - | - | Steel | - | - | - | - | - | Aluminum | - | - | - | - | - | - | - | Aluminum | Aluminum | Aluminum | - | Aluminum | - | - | - | - |
| Length Type | - | Single | Single | - | - | Double | Single | Single | Single / Double | Single | Single | Single | - | Single | Single | Single | Single | Single | Single | - | - | - | Single | Single | Single / Double | - | Single | Single | Single | Single | - |
| Mounting Shaft Fits | - | h6 | h7 | - | - | - | h7 | h7 | - | g6 | h7 | h6 | - | d8 / e7 / g6 / f8 | - | e7 | h6 | h6 | g6 | - | - | - | - | - | - | - | e7 | h7 | h7 | e7 | - |
| Mounting Hole Fits | H7 | M7 | - | - | H7 | - | H7 | H7 | - | H7 | H7 | M7 | - | - | - | H7 | H7 | H7 | H7 | H7 | H7 | - | - | - | - | - | H7 | H7 | H7 | H7 | - |
| Thickness t(mm) | 0.8 ～ 2 | 1.5 ～ 3 | 1 ～ 1.5 | - | - | - | - | - | - | - | - | - | - | 2 ～ 5 | - | - | - | - | - | 1 | 1.5 | - | - | - | - | - | - | - | - | - | - |
| Lubrication | Unlubricated | Unlubricated | Unlubricated | - | - | - | Unlubricated | Unlubricated | - | Unlubricated | Regular Lubrication | Unlubricated | - | Unlubricated | - | Unlubricated | Unlubricated | Unlubricated | Unlubricated | Unlubricated | Unlubricated | Unlubricated | - | - | - | - | Unlubricated | Unlubricated | Unlubricated | Unlubricated | - |
