SSCL3 UL Listed (CL3) Support

Volume Discount

MISUMI_Test

Cable for 300 V UL-CL3 Standard Fixed Signals

VW-1
ULAWM
ULLISTED
For Signal
Oil-Resistant
Strand Wire
300 V

● Soft oil-resistant sheaths are used.

· This product is compatible with "UL Traceability Program / Processed Wire."
* For cables in stock, please keep in mind that because we cut them to the specified size, they cannot be canceled or returned.
* All unit prices are per meter.
Unit Price Calculation Method
[Formula: Last digits of model number (m) x unit price per meter above]
* Color and softness may vary slightly due to manufacturer changes.

Electrical Appliance and Material Safety Law certificate has not been obtained.

Part Number

Configured Part Number is shown.

Product specification
Part Numbers

Specifications

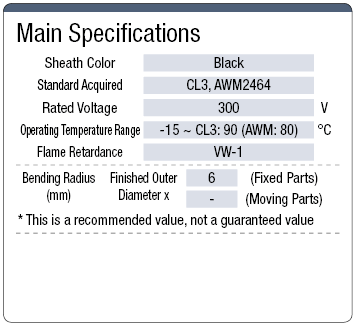

SSCL3 UL Listed (CL3) Support:Related Image

* Before ordering, confirm that the following symbols in the order (if any) are correct: "( = single-byte bracket"; "1 = One"; "I = i"; "0 = zero"; "O = oh".


			Sales Unit
Model Number	AWG Size	Number of Cores	Total Length ^*3 or Specified Length
Model Number	AWG Size	Number of Cores	Total Length ^*3 or Specified Length
SSCL3	24	2	1 ~ 100 (Specify 1 m Increment) / 500 / 1000
		3
		4
		6
		8
		10
		16
		20
		34
		40
	22	2
		3
		4
		6
		8
		10
		16
		20
		24
	20	2
		3
		4
		6
		8
		10
		20

Be sure to read the following precautions when you place an order.
* Length in "m" is included in our model numbers. Always specify quantity as number of units, not as meters.
* For the latest information regarding standard unit price, quantity slide unit price, shipment days, etc., refer to the Misumi VONA e-catalog.
* 1 Stock products are indicated with T or A in the price column at right.
* 2 All unit prices above are per meter.
Unit Price Calculation Method [Formula: Last digits of model number (m) x unit price per meter above]
* 3 Please note that when ordering 1000 m and 500 m, the order will be delivered as 100 m windings (we cannot accept orders for single cables).

More Information

Specifications

Model Number	AWG Size	Number of Cores	Estimated Section Area (mm²) ^*1	Twisted Structure (See Figure)	Number of Wire Cores	Finished ^*4 Outer Diameter (mm)	Approximate Mass kg/km	Electrical Properties				Conductor			Insulation		Wire Core Outer Diameter Approx. (mm)	Sheath		Specification	Sample Provided
Model Number	AWG Size	Number of Cores	Estimated Section Area (mm²) ^*1	Twisted Structure (See Figure)	Number of Wire Cores	Finished ^*4 Outer Diameter (mm)	Approximate Mass kg/km	Allowable Current A (30 °C) ^*2	Conductor Resistance Ω / km (20 °C)	Insulation Properties MΩkm (20 °C)	Withstand Voltage V / Min	Structure Strands / mm	Outer Diameter Approx. (mm)	Plating ^*3	Thickness (mm)	Material ^*3	Wire Core Outer Diameter Approx. (mm)	Thickness (mm)	Material ^*3	Specification	Sample Provided
SSCL3	24	2	0.2	Core / Layer Stranding	2	4.1	21	4.2	90.7 or less	30.5 or more	AC.2000	11/0.16	0.61	Tin	0.26	PVC	1.14	0.85	PVC	CL3 AWM2464	◎
		3			3	4.3	32	3.7													◎
		4			4	4.6	35	3.3													◎
		6			6	5.2	42	2.8													◎
		8			8	5.7	51	2.4										0.90			◎
		10			10	6.5	60	2.2													◎
		16			16	7.3	89	1.7													◎
		20			20	7.9	110	1.7													◎
		34			34	10.1	180	1.2										1.00			◎
		40			40	10.4	192	1.2										1.00			◎
	22	2	0.3		2	4.4	25	5.6	58.7 or less	30.5 or more	AC.2000	17/0.16	0.76		0.27		1.3	0.85			◎
		3			3	4.6	38	4.9													◎
		4			4	4.9	43	4.3													◎
		6			6	5.8	53	3.7										0.90			◎
		8			8	6.2	65	3.2													◎
		10			10	7.1	85	3.0													◎
		16			16	8.0	116	2.2													◎
		20			20	9.0	146	2.2										1.00			◎
		24			24	9.9	165	1.8										1.00			◎
	20	2	0.5		2	5.1	35	7.9	37.6 or less	30.5 or more	AC.2000	21/0.18	0.95		0.36		1.67	0.85			◎
		3			3	5.4	48	6.9										0.85			◎
		4			4	5.9	60	6.1										0.90			◎
		6			6	6.9	75	5.2													◎
		8			8	7.4	99	4.5													◎
		10			10	8.8	119	4.2										1.00			◎
		20			20	11.2	220	3.1										1.10			◎

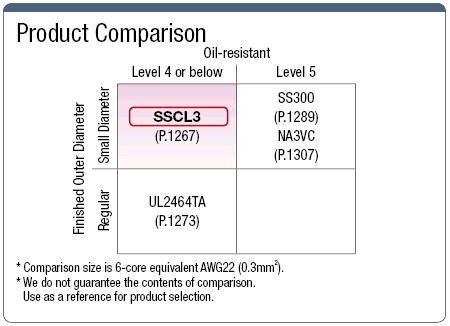

*1 The size conversion is for reference only. Refer to the comparison table on >>Click here for details.
*2 The value of allowable current is to be used only as a reference value and is not guaranteed.
*3 How to View Materials
[Plating] Tin... Tin Plated Annealed Copper Wire
[Materials] ‌PVC... Polyvinyl Chloride; PE... Polyethylene-based Material;
P... Polyester-based Material; Fluorine... Various Fluorine Resins; *... Other
*4 ‌For the outer diameter size of cables, wire sheath (coat), etc.,
refer to "Finished Outer Diameter" in the table above.

Current Reduction Factor

Ambient Temperature (°C)	30	40	50	60	70
Current Reduction Factor	1.00	0.90	0.78	0.64	0.45

Allowable current value indicates the calculated value of 1 cable laid aboveground in ambient temperature of 30°C, and is not a guaranteed value.
If the ambient temperature is 30 °C or above, the above current reduction factor is multiplied by the allowable current.
(Example) Allowable current value 4.2 x 0.9 = 3.78 (A) when the ambient temperature for 2-core AWG24 is 40 °C

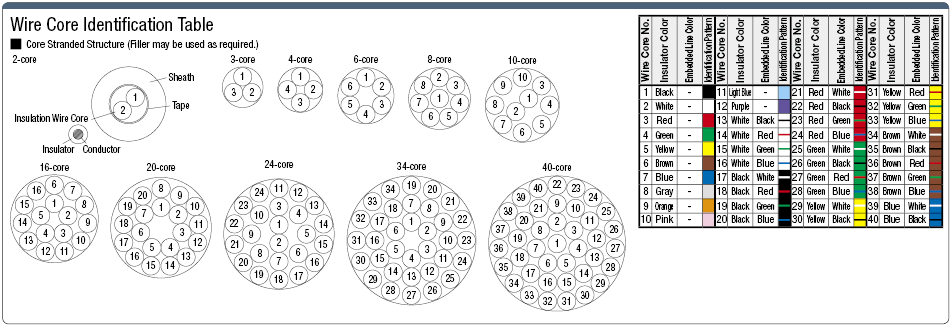

SSCL3 UL Listed (CL3) Support:Related Image

: 30; 45; 60

Part Number
SSCL3-20-2-29
SSCL3-20-2-39
SSCL3-20-2-43
SSCL3-20-2-51
SSCL3-20-2-52
SSCL3-20-3-29
SSCL3-20-4-19
SSCL3-20-4-54
SSCL3-20-4-71
SSCL3-20-4-72
SSCL3-20-6-4
SSCL3-20-6-20
SSCL3-20-6-28
SSCL3-20-6-92
SSCL3-20-8-27
SSCL3-20-8-70
SSCL3-20-10-31
SSCL3-20-10-63
SSCL3-20-20-53
SSCL3-20-20-75
SSCL3-22-2-1
SSCL3-22-2-2
SSCL3-22-2-3
SSCL3-22-2-4
SSCL3-22-2-5
SSCL3-22-2-6
SSCL3-22-2-7
SSCL3-22-2-8
SSCL3-22-2-9
SSCL3-22-2-10
SSCL3-22-2-11
SSCL3-22-2-12
SSCL3-22-2-13
SSCL3-22-2-14
SSCL3-22-2-15
SSCL3-22-2-16
SSCL3-22-2-17
SSCL3-22-2-18
SSCL3-22-2-19
SSCL3-22-2-20
SSCL3-22-2-21
SSCL3-22-2-22
SSCL3-22-2-23
SSCL3-22-2-24
SSCL3-22-2-25
SSCL3-22-2-26
SSCL3-22-2-27
SSCL3-22-2-28
SSCL3-22-2-29
SSCL3-22-2-30
SSCL3-22-2-31
SSCL3-22-2-32
SSCL3-22-2-33
SSCL3-22-2-34
SSCL3-22-2-35
SSCL3-22-2-36
SSCL3-22-2-37
SSCL3-22-2-38
SSCL3-22-2-39
SSCL3-22-2-40

Standard Unit Price	Minimum order quantity	Days to Ship	Overall Length (m)	Conductor Cross Section (mm²)	AWG size (AWG)	Number Of Cores (Core)	Finished outer diameter (mm)
MYR 256.12	1 Piece(s)	2 Day(s) or more	29	0.5	20	2	5.1
MYR 344.43	1 Piece(s)	2 Day(s) or more	39	0.5	20	2	5.1
MYR 379.76	1 Piece(s)	2 Day(s) or more	43	0.5	20	2	5.1
MYR 342.14	1 Piece(s)	2 Day(s) or more	51	0.5	20	2	5.1
MYR 348.85	1 Piece(s)	2 Day(s) or more	52	0.5	20	2	5.1
MYR 285.67	1 Piece(s)	2 Day(s) or more	29	0.5	20	3	5.4
MYR 232.34	1 Piece(s)	2 Day(s) or more	19	0.5	20	4	5.9
MYR 490.67	1 Piece(s)	2 Day(s) or more	54	0.5	20	4	5.9
MYR 645.14	1 Piece(s)	2 Day(s) or more	71	0.5	20	4	5.9
MYR 654.22	1 Piece(s)	2 Day(s) or more	72	0.5	20	4	5.9
MYR 94.43	1 Piece(s)	2 Day(s) or more	4	0.5	20	6	6.9
MYR 349.87	1 Piece(s)	2 Day(s) or more	20	0.5	20	6	6.9
MYR 489.81	1 Piece(s)	2 Day(s) or more	28	0.5	20	6	6.9
MYR 1,218.77	1 Piece(s)	2 Day(s) or more	92	0.5	20	6	6.9
MYR 541.02	1 Piece(s)	2 Day(s) or more	27	0.5	20	8	7.4
MYR 1,141.33	1 Piece(s)	3 Day(s) or more	70	0.5	20	8	7.4
MYR 823.97	1 Piece(s)	2 Day(s) or more	31	0.5	20	10	8.8
MYR 1,273.30	1 Piece(s)	2 Day(s) or more	63	0.5	20	10	8.8
MYR 3,186.56	1 Piece(s)	2 Day(s) or more	53	0.5	20	20	11.2
MYR 4,509.28	1 Piece(s)	2 Day(s) or more	75	0.5	20	20	11.2
MYR 15.54	1 Piece(s)	2 Day(s) or more	1	0.3	22	2	4.4
MYR 31.07	1 Piece(s)	2 Day(s) or more	2	0.3	22	2	4.4
MYR 46.62	1 Piece(s)	2 Day(s) or more	3	0.3	22	2	4.4
MYR 62.16	1 Piece(s)	2 Day(s) or more	4	0.3	22	2	4.4
MYR 76.32	1 Piece(s)	2 Day(s) or more	5	0.3	22	2	4.4
MYR 84.86	1 Piece(s)	2 Day(s) or more	6	0.3	22	2	4.4
MYR 93.40	1 Piece(s)	2 Day(s) or more	7	0.3	22	2	4.4
MYR 101.95	1 Piece(s)	2 Day(s) or more	8	0.3	22	2	4.4
MYR 93.24	1 Piece(s)	2 Day(s) or more	9	0.3	22	2	4.4
MYR 88.31	1 Piece(s)	2 Day(s) or more	10	0.3	22	2	4.4
MYR 97.15	1 Piece(s)	2 Day(s) or more	11	0.3	22	2	4.4
MYR 105.97	1 Piece(s)	2 Day(s) or more	12	0.3	22	2	4.4
MYR 114.81	1 Piece(s)	2 Day(s) or more	13	0.3	22	2	4.4
MYR 123.64	1 Piece(s)	2 Day(s) or more	14	0.3	22	2	4.4
MYR 132.47	1 Piece(s)	2 Day(s) or more	15	0.3	22	2	4.4
MYR 141.30	1 Piece(s)	2 Day(s) or more	16	0.3	22	2	4.4
MYR 150.13	1 Piece(s)	2 Day(s) or more	17	0.3	22	2	4.4
MYR 158.97	1 Piece(s)	2 Day(s) or more	18	0.3	22	2	4.4
MYR 167.80	1 Piece(s)	2 Day(s) or more	19	0.3	22	2	4.4
MYR 166.44	1 Piece(s)	2 Day(s) or more	20	0.3	22	2	4.4
MYR 174.76	1 Piece(s)	2 Day(s) or more	21	0.3	22	2	4.4
MYR 183.09	1 Piece(s)	2 Day(s) or more	22	0.3	22	2	4.4
MYR 191.40	1 Piece(s)	2 Day(s) or more	23	0.3	22	2	4.4
MYR 199.73	1 Piece(s)	2 Day(s) or more	24	0.3	22	2	4.4
MYR 208.05	1 Piece(s)	2 Day(s) or more	25	0.3	22	2	4.4
MYR 216.38	1 Piece(s)	2 Day(s) or more	26	0.3	22	2	4.4
MYR 224.70	1 Piece(s)	2 Day(s) or more	27	0.3	22	2	4.4
MYR 233.01	1 Piece(s)	2 Day(s) or more	28	0.3	22	2	4.4
MYR 241.34	1 Piece(s)	2 Day(s) or more	29	0.3	22	2	4.4
MYR 249.66	1 Piece(s)	2 Day(s) or more	30	0.3	22	2	4.4
MYR 257.99	1 Piece(s)	2 Day(s) or more	31	0.3	22	2	4.4
MYR 266.30	1 Piece(s)	2 Day(s) or more	32	0.3	22	2	4.4
MYR 274.63	1 Piece(s)	2 Day(s) or more	33	0.3	22	2	4.4
MYR 282.95	1 Piece(s)	2 Day(s) or more	34	0.3	22	2	4.4
MYR 291.28	1 Piece(s)	2 Day(s) or more	35	0.3	22	2	4.4
MYR 299.60	1 Piece(s)	2 Day(s) or more	36	0.3	22	2	4.4
MYR 307.91	1 Piece(s)	2 Day(s) or more	37	0.3	22	2	4.4
MYR 316.24	1 Piece(s)	2 Day(s) or more	38	0.3	22	2	4.4
MYR 324.56	1 Piece(s)	2 Day(s) or more	39	0.3	22	2	4.4
MYR 332.89	1 Piece(s)	2 Day(s) or more	40	0.3	22	2	4.4

Basic Information

Rated Voltage	300V	Shield	None	Properties	Oil resistance
Representative Standard	UL	Sheath (outer coating) color	Black	Sheath (outer coating) material	PVC
Insulation body materials	PVC	Power supply/signal	For signals	Other properties	Pliability

Configure

147 Part Numbers

View Part Numbers

Configure Remaining Specifications

Completed

Specification/Dimensions

Overall Length(m)
1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

67

68

69

70

71

72

73

74

75

76

77

78

79

80

81

82

83

84

85

86

87

88

89

90

91

92

93

94

95

96

97

98

99

100
Clear
Conductor Cross Section(mm²)
0.2

0.3

0.5
Clear
AWG size(AWG)
20

22

24
Clear
Number Of Cores(Core)
2

3

4

6

8

10

16

20

24
Clear
Finished outer diameter(mm)
4.3

4.4

4.6

4.9

5.1

5.2

5.4

5.7

5.8

5.9

6.2

6.5

6.9

7.1

7.3

7.4

7.9

8

8.8

9

9.9

11.2
Clear

Days to Ship

All

2 Day(s) or Less

3 Day(s) or Less
Clear

Specify Alterations

The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .

Additional Products in this Category

Customers Who Viewed This Item Also Viewed

SS300 UL
MISUMI_Test

Days to Ship : 1 Day(s) or more
SS300SB UL with Shield
MISUMI_Test

Standard Price : MYR 20.76-

Days to Ship : 2 Day(s) or more
UL2464TA UL-AWM / Listed Standard
MISUMI_Test

Standard Price : MYR 119.48-

Days to Ship : 2 Day(s) or more
NASE Series Wire Core ID for Sensor
MISUMI_Test

Standard Price : MYR 29.22-

Days to Ship : 2 Day(s) or more
KVC36 UL Standard
KURAMO ELECTRIC

Standard Price : MYR 173.79-

Days to Ship : 1 Day(s) or more
STOTCE UL Listed / CE / c-UL Support
MISUMI_Test

Standard Price : MYR 5,189.16

Days to Ship : 2 Day(s) or more
MAST-UL2464: UL2464-compatible UL-Standard Wire
MISUMI_Test

Standard Price : MYR 29.30-

Days to Ship : 2 Day(s) or more
KVC36 UL Standard
MISUMI_Test

Standard Price : MYR 21.27-

Days to Ship : 1 Day(s) or more
NA3VC UL Standard
MISUMI_Test

Standard Price : MYR 30.57-

Days to Ship : 2 Day(s) or more
UL2464TASB UL-AWM / Listed Standard With Shield
MISUMI_Test

Standard Price : MYR 554.76-

Days to Ship : 2 Day(s) or more
NA3MF UL Standard
MISUMI_Test

Standard Price : MYR 27.38-

Days to Ship : 2 Day(s) or more
NA6UCL, UL-Listed / CE / CSA / PSE Support
MISUMI_Test

Standard Price : MYR 49.54-

Days to Ship : 2 Day(s) or more

back next

Tech Support

Factory Automation, Electronics, Tools, & MRO (Maintenance, Repair and Operations): Tel：(60) 3 7960 8499 / FAX：(60) 3 7960 7499; 9:00am - 6:00pm (Monday - Friday)
9:00am - 1:00pm (Saturday); Technical Inquiry

How can we improve?

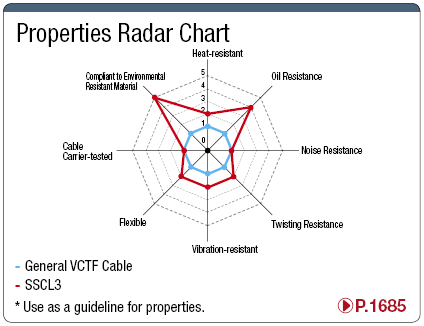

SSCL3 UL Listed (CL3) Support

Specifications
