Plastic Control Box Waterproof Economy Type (Part Numbers)

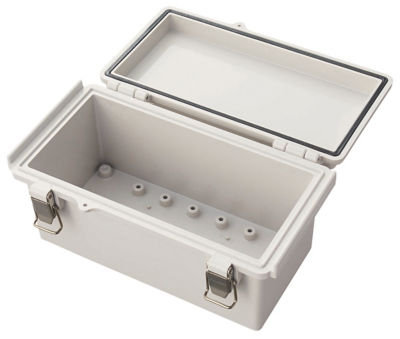

Plastic Control Box Waterproof Economy Type

Click this image to zoom it.

Move the mouse over the image to zoom

  • Plastic Control Box Waterproof Economy Type
  • Plastic Control Box Waterproof Economy Type
  • Plastic Control Box Waterproof Economy Type
  • Volume Discount

MISUMI_Test

MISUMI_Test

A small opening/closing box that is optimal for wiring relays

  • TUV
  • VDE
  • IP66
  • Hole Machining

A small opening/closing box that is optimal for wiring relays
● Plastic latch type with removable top cover.
● Has a mount hole for a padlock.
●Meets TÜV standard.
Mat-
erial		Top CoverABS (AG: WHITE GRAY)
Polycarbonate (AT: Transparent)
BodyABS (White Gray)
GasketPolyurethane Foam
Hinge/LatchReinforced Plastic (Gray)
Base MountABS (White Gray)
Protection GradeIP66
Flame Retardant GradeABS UL94-HB
Polycarbonate UL94-VO
Operating Temperature Range－-40°C to +80°C
Average Thickness4 mm
・Mounting feet are not included.

[Air Bubbles in Top Cover]
Air bubbles may be seen in the transparent top cover. This does not affect the strength of the cover.
The cover is in good condition as long as there are no more than 4 air bubbles with a size of less than 5 mm.

Part Number

Configured Part Number is shown.

Specification Table

Plastic Control Box Waterproof Economy Type: Related Image
Top Cover: White grayTop Cover: Transparent
ModelModel
KBOXEN-AG-1013KBOXEN-AT-1013
KBOXEN-AG-1015KBOXEN-AT-1015
KBOXEN-AG-1020KBOXEN-AT-1020
KBOXEN-AG-1027KBOXEN-AT-1027
KBOXEN-AG-1515KBOXEN-AT-1515
KBOXEN-AG-1520KBOXEN-AT-1520
KBOXEN-AG-1818KBOXEN-AT-1818
KBOXEN-AG-2030-SKBOXEN-AT-2030-S
KBOXEN-AG-2030KBOXEN-AT-2030
KBOXEN-AG-2030-BKBOXEN-AT-2030-B
KBOXEN-AG-2535KBOXEN-AT-2535





Basic Specifications



30
60
90
  1. 1
Part Number
KBOXEN-AG-2030-B
KBOXEN-AG-2535
KBOXEN-AT-2030-B
KBOXEN-AT-2535
Part NumberStandard Unit PriceMinimum order quantityVolume DiscountDays to ShipDimension width W
(mm) 		Dimension vertical H
(mm) 		Dimension depth D
(mm) 		Color

MYR 304.01

1 Piece(s)Available 2 Day(s) or more 310222205Cover / Body: White Gray

MYR 396.57

1 Piece(s)Available 2 Day(s) or more 358270152Cover / Body: White Gray

MYR 332.89

1 Piece(s)Available 2 Day(s) or more 310222205Cover: Transparent / Body: Gray White Gray

MYR 458.57

1 Piece(s)Available 2 Day(s) or more 358270152Cover: Transparent / Body: Gray White Gray

Loading...

  1. 1

Outline Drawing

Plastic Control Box Waterproof Economy Type: Related Image

Basic Information

Type Control box Material Resin Protection function (environmentally resistant) IP66
Installation Indoor Representative Standard TUV Locking type Resin Snap Key
Main body plate thickness(mm) 4 Features Resin intermediate plate

Configure

Clear All

4 Part Numbers

View Part Numbers

Configure Remaining Specifications
Completed
loading

Specification/Dimensions

  • Dimension width W(mm)

    • 310
    • 358

    Clear

  • Dimension vertical H(mm)

    • 222
    • 270

    Clear

  • Dimension depth D(mm)

    • 152
    • 205

    Clear

  • Color

    • Cover / Body: White Gray
    • Cover: Transparent / Body: Gray White Gray

    Clear

  • CAD

    • 2D

    Clear

Days to Ship

    • All
    • 2 Day(s) or Less

    Clear

Specify Alterations
