AWG28 MAST-UL20276SB: UL20276-compatible UL-Standard Shielded Wire

Sino-Japanese Model 30 V UL-AWM Standards With Shield

VW-1
ULAWM
Strand Wire
Single Shield
Twisted Pair
30 V

● Braid-shielded for EMI countermeasures.

The Electrical Appliance and Material Safety Law certificate has not been obtained.

· Be careful not to confuse specified length and quantity when ordering.
· 1P = 2-core (twisted pair).
· Not oil-resistant.
· This product is compatible with "UL Traceability Program / Processed Wire." (c-UL is not compatible)
* For cables in stock, please keep in mind that because we cut them to the specified size, they cannot be canceled or returned.
* Color and softness may vary slightly due to manufacturer changes.
The Electrical Appliance and Material Safety Law certificate has not been obtained.

Part Number

Configured Part Number is shown.

Product specification
Part Numbers

Specifications

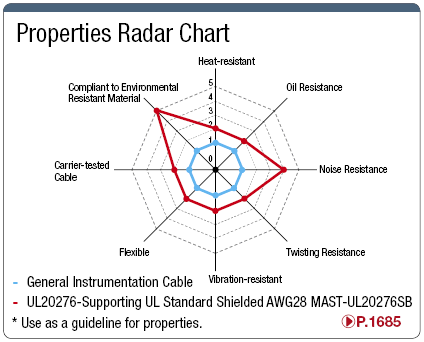

AWG28 MAST-UL20276SB: UL20276-compatible UL-Standard Shielded Wire:Related Image

* Before ordering, confirm that the following symbols in the order (if any) are correct: "( = single-byte bracket"; "1 = One"; "I = i"; "0 = zero"; "O = oh".

1 Piece Unit 1 Roll Unit

Model Number	AWG Size	Number of Pairs 1P = 2 Cores	Total Length or Specified Length


MAST-UL20276SB	28	5P	1 - 100 (Specify 1 m Increment)
		8P
		10P
		13P
		17P
		20P
		25P
		34P
		50P

Be sure to read the following precautions when you place an order.
For the latest information regarding standard unit price, quantity slide unit price, shipment days, etc., refer to the Misumi VONA e-catalog.
* Length in "m" is included in model numbers. Always specify quantity as number of units, not as meters.
* All listed unit prices above are per meter.
Unit Price Calculation Method [Formula: Last digits of model number (m) x unit price per meter above]
* Check the indications for number of cores, pair number, core / pair number, and pair number / core when ordering (check the Specification Table for number of wire cores). 1P (1 PS) is "x 2-core".

More Information

General specifications

Sheath Color	Black
Operating Temperature Range	0 ~ 80°C
Standard Acquired	ULAWM20276
Bending Radius	Finished Outer Diameter x 10 (Fixed Part)

Structure Outline

Conductor	Tin Plated Annealed Copper Stranded Wire
Insulator	Heat Resistant Vinyl
Twisting	Twisted Pair
Shield	Tin Plated Annealed Copper Braid
Sheath	Heat-resistant Soft Vinyl / Matte

Specifications

Model Number	AWG Size	Number of Pairs 1P = 2 Cores	Specified Length (m)	Conductor		Insulation Thickness (mm)	Wire Core Outer Diameter Approx. (mm)	Sheath Thickness (mm)	Finished Outer Diameter (mm)	Electrical Properties				Approximate Mass kg/km
				Structure Strands / mm	Outer Diameter Approx. mm					Conductor Resistance Ω/km (20 °C)	Insulation Properties MΩkm (20°C)	Test Voltage V / Min	Allowable Current A (30 °C)
MAST-UL20276SB	28 * (0.08 mm²)	5P	1 ~ 100 (Specify 1 m Increment)	7/0.127	0.38	0.1	0.58	0.81	5.1	246 or less	10 or more	500	1.1	41
		8P							5.5				0.9	51
		10P							6					63
		13P							6.7				0.7	75
		17P							7.2				0.6	86
		20P							7.6					96
		25P							8.1				0.5	110
		34P							9					134
		50P							10.4				0.4	182

Ambient Temperature (°C)	30	40	50	60	70
Current Reduction Factor	1	0.89	0.77	0.63	0.45

Wire Core Identification Table

Pair No.	Insulator Color	Dot Mark	Dot Mark Color		Pair No.	Insulator Color	Dot Mark (Dash ^*)	Dot Mark Color
Pair No.	Insulator Color	Dot Mark	Core of Wire 1	Core of Wire 2	Pair No.	Insulator Color	Dot Mark (Dash ^*)	Core of Wire 1	Core of Wire 2
1	Orange	■	Black	Red	26	Orange	■■	Black	Red
2	Gray	■	Black	Red	27	Gray	■■	Black	Red
3	White	■	Black	Red	28	White	■■	Black	Red
4	Yellow	■	Black	Red	29	Yellow	■■	Black	Red
5	Pink	■	Black	Red	30	Pink	■■	Black	Red
6	Orange	■■	Black	Red	31	Orange	■■■■	Black	Red
7	Gray	■■	Black	Red	32	Gray	■■■■	Black	Red
8	White	■■	Black	Red	33	White	■■■■	Black	Red
9	Yellow	■■	Black	Red	34	Yellow	■■■■	Black	Red
10	Pink	■■	Black	Red	35	Pink	■■■■	Black	Red
11	Orange	■■■	Black	Red	36	Orange	■■■■■■	Black	Red
12	Gray	■■■	Black	Red	37	Gray	■■■■■■	Black	Red
13	White	■■■	Black	Red	38	White	■■■■■■	Black	Red
14	Yellow	■■■	Black	Red	39	Yellow	■■■■■■	Black	Red
15	Pink	■■■	Black	Red	40	Pink	■■■■■■	Black	Red
16	Orange	■■■■	Black	Red	41	Orange	■■■■■■■■	Black	Red
17	Gray	■■■■	Black	Red	42	Gray	■■■■■■■■	Black	Red
18	White	■■■■	Black	Red	43	White	■■■■■■■■	Black	Red
19	Yellow	■■■■	Black	Red	44	Yellow	■■■■■■■■	Black	Red
20	Pink	■■■■	Black	Red	45	Pink	■■■■■■■■	Black	Red
21	Orange	■■■■■■ (consecutive)	Black	Red	46	Orange	■■■■■■■■■■	Black	Red
22	Gray	■■■■■■ (consecutive)	Black	Red	47	Gray	■■■■■■■■■■	Black	Red
23	White	■■■■■■ (consecutive)	Black	Red	48	White	■■■■■■■■■■	Black	Red
24	Yellow	■■■■■■ (consecutive)	Black	Red	49	Yellow	■■■■■■■■■■	Black	Red
25	Pink	■■■■■■ (consecutive)	Black	Red	50	Pink	■■■■■■■■■■	Black	Red

: 30; 45; 60

Part Number
MAST-UL20276SB-28-5P-12
MAST-UL20276SB-28-5P-31
MAST-UL20276SB-28-5P-53
MAST-UL20276SB-28-5P-67
MAST-UL20276SB-28-5P-92
MAST-UL20276SB-28-8P-22
MAST-UL20276SB-28-17P-63
MAST-UL20276SB-28-25P-55
MAST-UL20276SB-28-25P-62
MAST-UL20276SB-28-25P-65
MAST-UL20276SB-28-34P-97
MAST-UL20276SB-28-50P-25
MAST-UL20276SB-28-50P-94

Standard Unit Price	Minimum order quantity	Days to Ship
MYR 98.74	1 Piece(s)	2 Day(s) or more
MYR 237.64	1 Piece(s)	2 Day(s) or more
MYR 392.53	1 Piece(s)	2 Day(s) or more
MYR 496.17	1 Piece(s)	2 Day(s) or more
MYR 681.33	1 Piece(s)	2 Day(s) or more
MYR 204.87	1 Piece(s)	2 Day(s) or more
MYR 968.60	1 Piece(s)	2 Day(s) or more
MYR 1,100.52	1 Piece(s)	2 Day(s) or more
MYR 1,240.54	1 Piece(s)	2 Day(s) or more
MYR 1,300.61	1 Piece(s)	2 Day(s) or more
MYR 2,474.40	1 Piece(s)	2 Day(s) or more
MYR 960.40	1 Piece(s)	2 Day(s) or more
MYR 3,456.35	1 Piece(s)	2 Day(s) or more

Configure

13 Part Numbers

View Part Numbers

Configure Remaining Specifications

Completed

Specification/Dimensions

Days to Ship

All

2 Day(s) or Less
Clear

Specify Alterations

The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
